Crane Rail Installation Tools for Thermite Welding

Purpose-built tools for every stage of the aluminothermic welding process — from rail end alignment and mold setup to preheating, pouring, and post-weld cleanup.

← Back to All Equipment

← Back to All Equipment

Installation Tools

Complete Tool Set for Rail Thermite Welding Operations

Nine specialized tools covering the full installation workflow — from rail end preparation through preheating, controlled pouring, and safe slag cleanup.

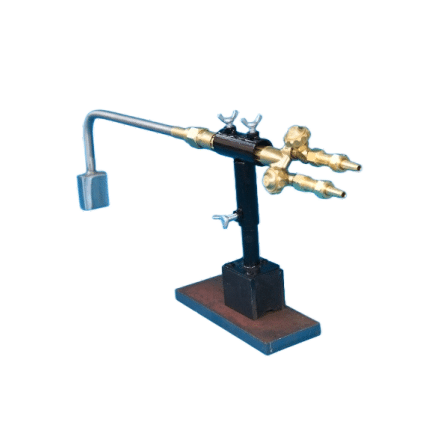

Preheater with Magnetic Stand

Custom-designed preheater assembly for controlled joint preheating before thermite pouring. The integrated magnetic bracket holds the preheater securely in position, freeing the operator’s hands for other tasks. Comes complete with standard oxygen and LPG hose connections.

Grip: 143TN brass, heat-resistant
Nozzle: Stainless steel tube with A3 steel tip
Magnetic Bracket: 1.46 kg, holds preheater in position
Total Weight: 3.8 kg
Dimensions: 620 mm length × 290 mm height

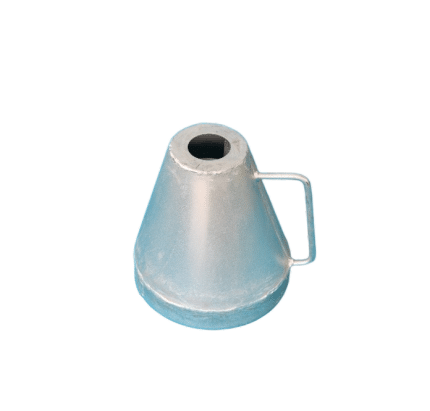

Crucible Lid

Safety cover for shielding against spark splatter and radiant heat during the thermite flux reaction. Creates a protective barrier over the crucible opening while allowing reaction gases to vent safely. An essential safety component for every welding operation.

Material: 2 mm cold-rolled steel plate
Weight: 3.2 kg
Max Bottom Opening: Φ240 mm
Function: Spark and radiant heat protection

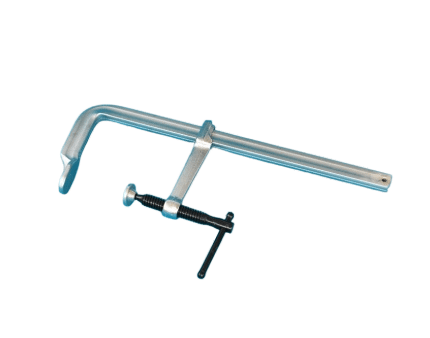

C-Clamp (Sand Mold Fixture)

Heavy-duty clamping tool for securing the sand mold assembly firmly against the rail during the welding process. Provides consistent, even pressure across the mold surface, preventing molten steel leakage and ensuring proper joint formation.

Material: 8 mm steel construction
Weight: 3.5 kg
Dimensions: 400 × 140 mm
Function: Sand mold securing and sealing

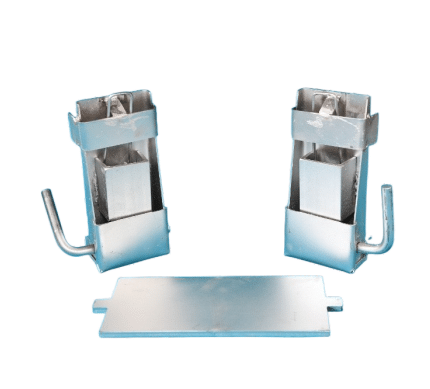

Welding Sand Box Frame

Sand mold form assembly that works with tension springs and C-clamps to tighten the mold securely against the rail profile. The frame centers the sand mold around the weld gap, ensuring consistent geometry across every joint.

Body Material: 2 mm cold-rolled steel plate
Base Plate: 8 mm steel
Weight: 5.4 kg
Dimensions: 230 × 105 × 50 mm
System: Spring-loaded with C-clamp retention

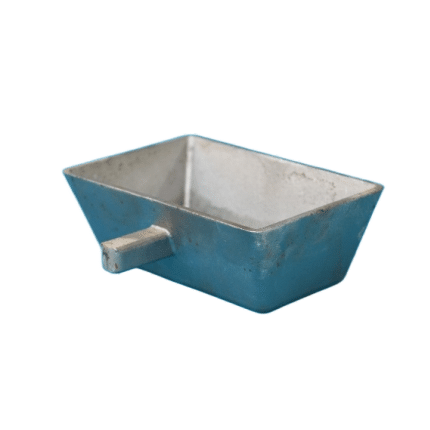

Slag Pan

Cast steel collection hopper for capturing excess molten slag discharged during the thermite pouring process. Positioned below the mold assembly before pouring and removed after the reaction completes. Withstands repeated exposure to molten slag at temperatures exceeding 2,500°C.

Material: Cast steel, high-temperature resistant
Weight: 5.4 kg
Dimensions: 250 × 170 × 80 mm
Function: Molten slag collection

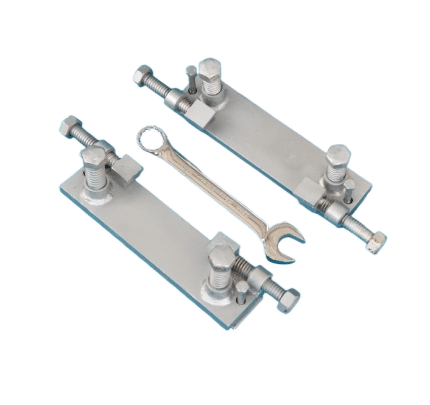

Rail Aligner

Heavy-duty alignment tool for rapid positioning and leveling of both rail ends at the weld joint. Ensures correct vertical and horizontal alignment before mold placement and preheating, directly impacting weld quality and the ability to meet rail profile tolerance requirements.

Material: 16 mm A3 steel, heavy-duty
Weight: 10.0 kg
Body Dimensions: 310 × 80 mm
Function: Rail end positioning & leveling

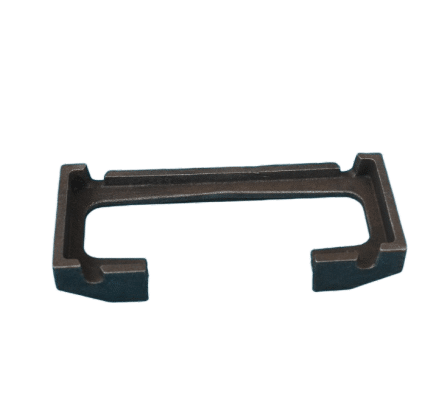

Crucible Holder

Centering fixture placed on top of the sand mold assembly. Performs three critical functions: securing the sand mold position, supporting the one-shot crucible, and aligning the crucible pouring spout precisely with the mold gate. Proper centering prevents off-axis pouring that could compromise joint quality.

Material: Cast steel, 8 mm thickness
Weight: 2.0 kg
Dimensions: 290 × 120 × 50 mm
Function: Mold retention + crucible support + spout alignment

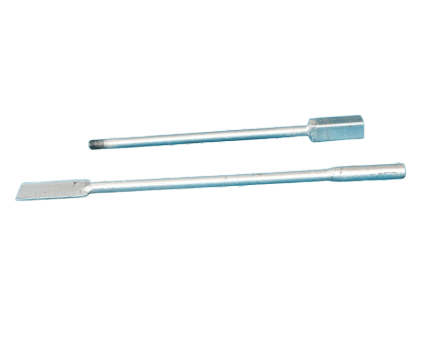

Slag Cleaning Rod

Multi-purpose tool for post-pour slag pan removal and luting sand clearance around the spent mold. The extended length provides a safe working distance from the still-hot mold assembly, offering anti-scald protection during cleanup operations

Material: Φ16 carbon steel round bar
Weight: 1.7 kg
Length: 995 mm
Function: Slag removal + sand clearance + anti-scald

Heavy-Duty Gas Hose (25 m)

Rubber gas hose assembly for oxygen and LPG supply connections from cylinders to the preheater station. The 25-meter length provides flexibility in field workstation layout, allowing cylinders to be positioned at a safe distance from the weld zone.

Material: Rubber hose, flexible and durable
Length: 25 meters per roll
Supply: 2-roll set (oxygen + LPG)

Frequently Asked Questions

Can these tools be purchased individually or only as a complete kit?

All tools are available as individual items. We also offer pre-configured tool kits bundled for different project scales — from a basic single-crew set to multi-crew site packages. Contact our sales team for kit recommendations based on your crew size and expected daily joint count.

Are these tools compatible with any brand of thermite welding consumables?

Yes. Our tools are designed for universal compatibility with standard thermite welding consumables. The preheater works with standard oxygen/LPG supplies, mold fixtures accommodate standard sand mold dimensions, and the crucible holder fits standard one-shot crucibles used across the industry.

What is the recommended spare parts strategy for these tools?

We recommend keeping spare preheater nozzle tips, C-clamp springs, and gas hose connectors on site. These are the components most subject to wear in daily use. All spare parts are available separately from Forgesail.

Do you offer custom tool configurations for special rail profiles?

Yes. We can customize tool dimensions for non-standard rail profiles and special project requirements. Contact our engineering team with your specific rail specification for a custom configuration quote.
