Steel Rail Sections & Specifications
Why Choose Forgesail? The Advantage of Rail supplier
Sourcing steel rails for large-scale international projects requires a resilient and cost-effective supply chain. Here is why EPC contractors worldwide partner with us:
1. Global Mill Access & Factory-Direct Pricing We provide direct access to the world’s top-tier steel manufacturers, including ArcelorMittal, Baowu, Ansteel, Pangang, and Yongyang. This robust global network ensures you receive premium rail profiles at highly competitive prices, strictly complying with any international standard.
2. Ready-to-Install Systems & Advanced Processing We deliver complete rail systems tailored to your exact site requirements. From precision cutting, drilling, and bending in our fully equipped workshop to supplying all matching accessories (like splice bars and clips), your rails arrive 100% ready for immediate installation.
(Unsure which rail profile fits best? Our engineers can recommend the perfect solution based on your project’s foundation, wheel load, and application.)
Popular steel rail profiles
The profiles customers order most often. Each profile page carries full dimensions, weight per metre, steel grades, drilling and export packing details.
Heavy rail
GB/T 2585 · EN 13674- 43 kg/m railP43
- 50 kg/m railP50
- 60 kg/m railP60
- UIC 6060E1
Light & mining rail
GB/T 11264- 12 kg/m rail12.2 kg/m
- 18 kg/m rail18.06 kg/m
- 22 kg/m rail22.3 kg/m
- 30 kg/m rail30.1 kg/m
Forgesail supplies industrial rail profiles for global applications. We offer American, European, African, Australian, Asian and Chinese specifications for compatibility with international standards. For container terminal operators, ForgeSail supplies quay crane rails (STS, A100–A150 profiles) and yard crane rails (RMG/RTG, A75–A120 profiles), both available with head-hardened surfaces and complete fastening system packages.

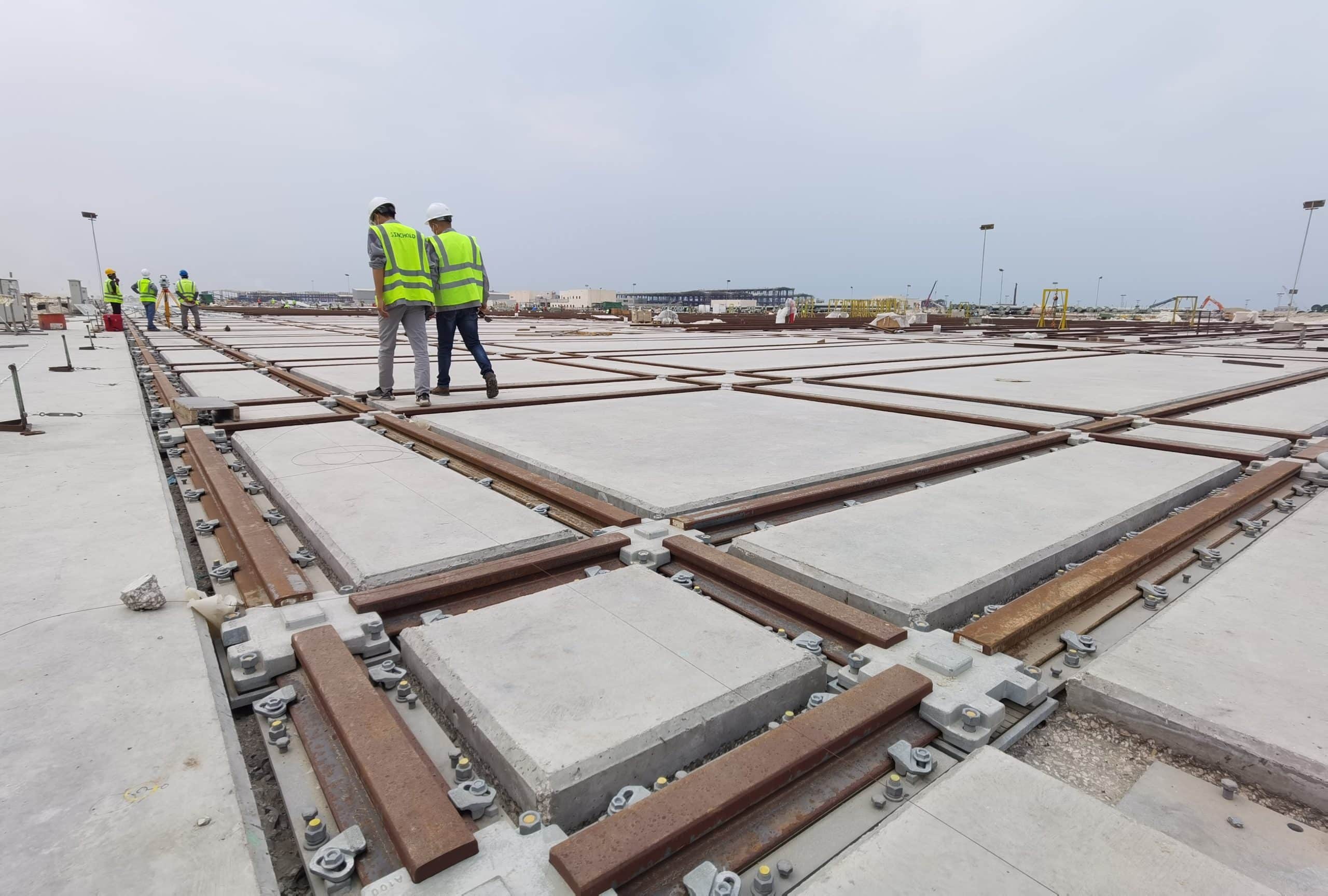

Our rails are used in steel & mining, heavy industry, container terminals, shipyards, bulk handling, concrete & cement plants, and metro/light rail projects.
Standard length is 12 m, with customized lengths and steel grades available on request.
Advanced In-House Deep Processing (Ready-to-Install) We go beyond standard steel supply. To eliminate on-site processing delays, all rails can be supplied in customized lengths and with all possible types of advanced machining. In our modern, fully equipped workshop and engineering department, rails can be cut to your exact requirements or processed otherwise. We have the expertise and equipment for a complete range of processing options, including:
Precision Vertical & Section Cuts: For seamless joints.
Custom Bending: Tailored curving for tram and transit systems.
Accurate Drilling & Milling: Perfectly aligned for your fastening systems.
On-Demand Shaping & Preserving: Specialized surface treatments and profiling.
GLOBAL MAJOR CRANE RAIL SPECIFICATIONS
| AMERICAN CRANE RAILS | |||||||

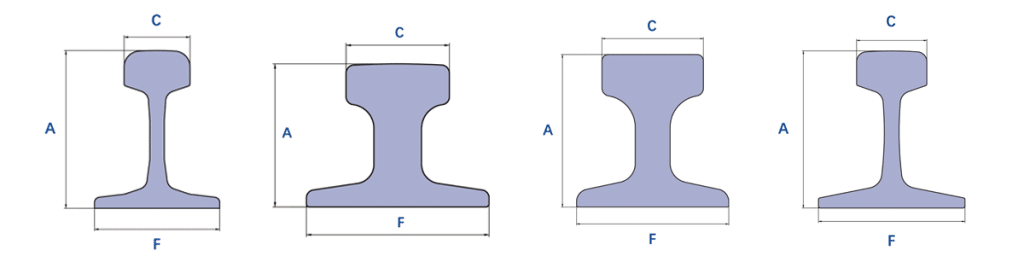

| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing | |
|---|---|---|---|---|---|---|---|
| 101 CR | CES 2 1987 | 165 | 100 | 155 | 100.4 | 101 CR drawing (PDF) | |
| 104 CR(MRS 51) | ASTM A759 | 127 | 63.5 | 127 | 51.7 | 104 CR(MRS 51) drawing (PDF) | |
| 105 CR(MRS 52) | ASTM A759 | 131.8 | 65.1 | 131.8 | 52.2 | 105 CR(MRS 52) drawing (PDF) | |
| 135 CR(MRS 67) | ASTM A759 | 132 | 79 | 146 | 67 | 135 CR(MRS 67) drawing (PDF) | |
| 171 CR(MRS85) | ASTM A759 | 152.4 | 109.1 | 152.4 | 84.8 | 171 CR(MRS85) drawing (PDF) | |
| 175 CR(MRS87B) | ASTM A759 | 152 | 102 | 152 | 86.8 | 175 CR(MRS87B) drawing (PDF) | |
| ASCE 70 | ASTM A1 | 117.5 | 62 | 117.5 | 34.5 | ASCE 70 drawing (PDF) | |
| ASCE 75 | ASTM A1 | 122.2 | 62.7 | 122.2 | 37.2 | ASCE 75 drawing (PDF) | |
| ASCE 80 | ASTM A1 | 127 | 64 | 127 | 39.8 | ASCE 80 drawing (PDF) | |
| ASCE 85 | ASTM A1 | 132 | 65 | 132 | 42.3 | ASCE 85 drawing (PDF) | |
| EUROPEAN / DIN CRANE RAILS | |||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing | |
| A100 | DIN 536 | 200 | 100 | 95 | 74.3 | A100 drawing (PDF) | |
| A120 | DIN 536 | 220 | 120 | 105 | 100 | A120 drawing (PDF) | |
| A150 | DIN 536 | 220 | 150 | 150 | 150.3 | A150 drawing (PDF) | |
| A45 | DIN 536 | 125 | 45 | 55 | 22.1 | A45 drawing (PDF) | |
| A55 | DIN 536 | 150 | 55 | 65 | 31.8 | A55 drawing (PDF) | |
| A65 | DIN 536 | 175 | 65 | 75 | 43.1 | A65 drawing (PDF) | |
| A75 | DIN 536 | 200 | 75 | 85 | 56.2 | A75 drawing (PDF) | |
| CHINESE (QU) | |||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing | |
| QU100 | YB/T 5055 | 150 | 100 | 150 | 89 | QU100 drawing (PDF) | |
| QU120 | YB/T 5055 | 170 | 120 | 170 | 118.2 | QU120 drawing (PDF) | |
| QU70 | YB/T 5055 | 120 | 70 | 120 | 52.8 | QU70 drawing (PDF) | |
| QU80 | YB/T 5055 | 130 | 80 | 130 | 63.69 | QU80 drawing (PDF) | |
| INDIAN / SPECIAL (ISCR) | |||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing | |
| ISCR 100 | IS 3443 | 150 | 102 | 150 | 89 | ISCR 100 drawing (PDF) | |
| ISCR 120 | IS 3443 | 170 | 120 | 170 | 118.5 | ISCR 120 drawing (PDF) | |
| ISCR 140 | IS 3443 | 170 | 140 | 170 | 146 | ISCR 140 drawing (PDF) | |
| ISCR 50 | IS 3443 | 90 | 51.2 | 90 | 29.8 | ISCR 50 drawing (PDF) | |
| ISCR 60 | IS 3443 | 105 | 60 | 105 | 40 | ISCR 60 drawing (PDF) | |
| ISCR 80 | IS 3443 | 130 | 82 | 130 | 64.4 | ISCR 80 drawing (PDF) | |
| SPECIAL CRANE RAILS (ARBED) | |||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing | |
| MR 151 | TRADE ARBED | 220 | 150 | 150 | 150.3 | MR 151 drawing (PDF) | |
| MR 77- No 5A | TRADE ARBED | 200 | 100 | 100 | 77 | MR 77- No 5A drawing (PDF) | |
| MRS 125 | TRADE ARBED | 180 | 120 | 180 | 125 | MRS 125 drawing (PDF) | |
| MRS 140 | TRADE ARBED | 220 | 120 | 150 | 140 | MRS 140 drawing (PDF) | |
| MRS 221 | TRADE ARBED | 220 | 220 | 160 | 221.4 | MRS 221 drawing (PDF) | |
| MRS 73 | TRADE ARBED | 146 | 69.9 | 157 | 73.6 | MRS 73 drawing (PDF) | |
| MRS 86 | TRADE ARBED | 165 | 102 | 102 | 85.5 | MRS 86 drawing (PDF) | |
| MRS 87B | TRADE ARBED | 152 | 102 | 152 | 86.8 | MRS 87B drawing (PDF) | |
| GIRDER CRANE RAILS | |||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing | |
| GCR183 | BS EN13674-6 | 280 | 75.9 | 120 | 183.1 | Request drawing (PDF) | |
| KB 100 | BS EN13674-6 | 132 | 100 | 138 | 81.2 | Request drawing (PDF) | |
| BS (BRITISH) CRANE RAILS | |||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing | |
| CR-100 kg | BS EN13674-6 | 155 | 120 | 150 | 100.2 | CR-100 kg drawing (PDF) | |
| CR-73 kg | BS EN13674-6 | 140 | 100 | 135 | 73.3 | CR-73 kg drawing (PDF) | |
| US CROSS REFERENCE (MRS) | |||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing | |
| MRS51(USA104CR) | ASTM A759 | 127 | 63.5 | 127 | 51.6 | MRS51(USA104CR) drawing (PDF) | |
| MRS52(USA105CR) | ASTM A759 | 131.8 | 65.1 | 131.8 | 52.1 | MRS52(USA105CR) drawing (PDF) | |
| MRS67(USA135CR) | ASTM A759 | 132 | 79 | 146 | 67 | MRS67(USA135CR) drawing (PDF) | |
| MRS85(USA171 CR) | ASTM A759 | 152.4 | 102.9 | 152.4 | 84.8 | MRS85(USA171 CR) drawing (PDF) | |
| MRS87A(PR85R) | ASTM A759 | 152 | 102 | 152 | 86.8 | MRS87A(PR85R) drawing (PDF) | |
No matching rails found.
For a detailed guide on crane rail types and specifications →Read the full guide
Frequently Asked Questions (FAQs)
What types of steel rails do you supply?
A: Forgesail specializes in supplying a comprehensive range of industrial rails. Our inventory includes Crane Rails (DIN 536 A45-A150, Chinese QU70-QU120, American ASCE/ASTM), Light Rails (GB, JIS, and BS standards for mining), and Transport/Heavy Rails (UIC 60, 54E1, 115 RE). We provide rail solutions for ports, warehouses, mining, and railway projects globally.
Can you provide custom rail cutting and drilling services?
A: Yes, we offer precise customization services. Rails can be cut to your specific lengths (standard 12m or custom sizes). We also provide 45-degree mitre cutting for seamless joints and drilling services according to your technical drawings. This ensures the rails are ready for immediate installation upon delivery.
What steel grades are available for your crane rails?
A: We supply rails in various high-strength steel grades to meet different load requirements. Common grades include U71Mn, U75V (Chinese Standard), 900A, 1100 (European Standard), and Carbon Steel (ASTM). If you are unsure which grade suits your project, our engineering team can provide recommendations based on your wheel load and operation frequency.
Do you supply matching rail accessories (clips and pads)?
A: Absolutely. Forgesail provides a "One-Stop" rail fastening solution. We supply matching rail clips (weldable or bolted), rubber rail pads, soleplates, and anchor bolts. Ensuring the compatibility of the rail and the fixing system is crucial for safety and longevity, and we guarantee a perfect fit for all our rail profiles.
Do you provide Mill Test Certificates (MTC) and Third-Party Inspection?
A: Quality is our priority. Every shipment comes with an original Mill Test Certificate (MTC) detailing the chemical composition and mechanical properties. We also welcome Third-Party Inspections (such as SGS, BV, or Lloyds) before shipment to ensure the rails meet your strict project specifications.
How do you package the rails for export to ensure no damage?
A: We use seaworthy packaging standards. Rails are bundled with strong steel strips and handled with specialized equipment to prevent bending or deformation during loading. For bulk orders, we optimize container loading or use bulk vessels to reduce your shipping costs while ensuring the rails arrive in perfect condition.
Tram rails are engineered for urban streetcar and light transit systems, ensuring smooth and quiet operation in densely populated environments. We supply a wide range of grooved and flat-bottom tram profiles compatible with modern tramway infrastructure.
Standard lengths and steel grades are available, with custom options upon request. With advanced machining capabilities in our workshop, tram rails can be precisely cut, drilled, milled, bent, or surface-treated to support reliable installation and long service life in urban settings.
TRANSPORT RAIL SPECIFICATIONS
| AMERICAN STANDARD (AREMA / ASTM) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
|---|---|---|---|---|---|---|
| 100 ARAA | ASTM A1-92 | 140 | 67 | 152.4 | 49.9 | 100 ARAA drawing (PDF) |
| 100 ARAB | ASTM A1-92 | 130.6 | 65.1 | 143.3 | 49.67 | 100 ARAB drawing (PDF) |
| 100 AREA | ASTM A1-92 | 136.53 | 68.26 | 152.4 | 50.35 | 100 AREA drawing (PDF) |
| 115 AREA | ASTM A1-92 | 139.7 | 64.6 | 168.3 | 52.3 | 115 AREA drawing (PDF) |
| 119 AREA | ASTM A1-92 | 139.7 | 69.4 | 173 | 59.41 | 119 AREA drawing (PDF) |
| 131 AREA | ASTM A1-92 | 152.4 | 74.5 | 180 | 64.3 | 131 AREA drawing (PDF) |
| 132AREA(AUS66KG) | ASTM A1-92 | 152.4 | 75.3 | 181 | 66 | 132AREA(AUS66KG) drawing (PDF) |
| 133 AREA | ASTM A1-92 | 152.4 | 76.2 | 179.39 | 66.29 | 133 AREA drawing (PDF) |
| 136 AREA | ASTM A1-92 | 152.4 | 74.61 | 185.74 | 67.7 | 136 AREA drawing (PDF) |
| 140 AREA | ASTM A1-92 | 152.4 | 76.2 | 185.74 | 69.2 | 140 AREA drawing (PDF) |
| 90 ARA-A | ASTM A1-92 | 130 | 65 | 143 | 44.3 | 90 ARA-A drawing (PDF) |
| ASCE 25 | ASTM A1 | 69.8 | 38.1 | 69.8 | 12.4 | ASCE 25 drawing (PDF) |
| ASCE 30 | ASTM A1 | 79.4 | 42.9 | 79.4 | 15.2 | ASCE 30 drawing (PDF) |
| ASCE 40 | ASTM A1 | 88.9 | 47.6 | 88.9 | 19.9 | ASCE 40 drawing (PDF) |
| ASCE 50 | ASCE | 98 | 54 | 98 | 25 | ASCE 50 drawing (PDF) |
| ASCE 60 | ASTM A1 | 108 | 60 | 108 | 29.8 | ASCE 60 drawing (PDF) |
| ASCE 70 | ASTM A1 | 117.5 | 62 | 117.5 | 34.5 | ASCE 70 drawing (PDF) |
| ASCE 75 | ASTM A1 | 122.2 | 62.7 | 122.2 | 37.2 | ASCE 75 drawing (PDF) |
| ASCE 80 | ASTM A1 | 127 | 64 | 127 | 39.8 | ASCE 80 drawing (PDF) |
| ASCE 85 | ASTM A1 | 132 | 65 | 132 | 42.3 | ASCE 85 drawing (PDF) |
| A75 | ASTM A759 | 200 | 75 | 85 | 56.2 | A75 drawing (PDF) |
| EUROPEAN STANDARD (UIC / EN / DIN / AFNOR) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| 27 UNI (27E1) | BS EN13674-4 | 95 | 50 | 120 | 27.2 | Request drawing (PDF) |
| 36 UNI (36E1) | BS EN13674-4 | 100 | 60 | 130 | 36.36 | Request drawing (PDF) |
| 46 UNI (46E4) | BS EN13674-4 | 135 | 65 | 145 | 47 | Request drawing (PDF) |
| 46AFNOR(U33) | NF A 45-313 | 134 | 62 | 145 | 46.36 | Request drawing (PDF) |
| 50 UNI (50E5) | UNI 3551 | 135 | 67 | 148 | 49.96 | Request drawing (PDF) |
| 50AFNOR(U50) | NF A 45-313 | 140 | 64.9 | 153 | 50.9 | Request drawing (PDF) |
| 52RAPT(52E1) | BS EN13674-4 | 150 | 65 | 150 | 52.1 | Request drawing (PDF) |
| 55G1(35GP) | BS EN 148111:2006 | 141.5 | 111.8 | 152.5 | 55.8 | Request drawing (PDF) |
| 56 E1 | CEN 60 | 140 | 69.85 | 158.75 | 56.3 | Request drawing (PDF) |
| 60 E2 | BS EN13674-1 | 150 | 72 | 172 | 60.03 | Request drawing (PDF) |
| A55 | DIN 536 | 150 | 55 | 65 | 31.8 | A55 drawing (PDF) |
| A65 | DIN 536 | 175 | 65 | 75 | 43.1 | A65 drawing (PDF) |
| DIN549b[49E3] | BS EN13674-1 | 125 | 67 | 146 | 47.86 | DIN549b[49E3] drawing (PDF) |
| EB 50T | BS EN13674-1 | 140 | 72 | 151 | 50.1 | Request drawing (PDF) |
| EB 63T | BS EN13674-1 | 140 | 72 | 151 | 62.95 | Request drawing (PDF) |
| Ri 51 N-KON | DIN 536 | 150 | 113 | 130 | 53 | Request drawing (PDF) |
| RI 59 N | EN14 11:2006+A1:2009 | 180 | 113 | 180 | 58.85 | Request drawing (PDF) |
| Ri 60 | EN14811:2006+A1:2009 | 180 | 113 | 180 | 60.6 | Request drawing (PDF) |
| Ri 60 N | EN14811:2006+A1:2009 | 180 | 112.1 | 180 | 59.7 | Request drawing (PDF) |
| S 24 | BS EN13674-1 | 90 | 53 | 115 | 24.4 | Request drawing (PDF) |
| S 30 | BS EN13674-1 | 110 | 55 | 120 | 30.4 | S 30 drawing (PDF) |
| S10 | BS EN13674-1 | 58 | 32 | 70 | 10.1 | S10 drawing (PDF) |
| S14 | BS EN13674-1 | 70 | 38 | 80 | 14 | S14 drawing (PDF) |
| S18 | BS EN13674-1 | 82 | 43 | 93 | 18.3 | S18 drawing (PDF) |
| S20 | BS EN13674-1 | 82 | 44 | 100 | 19.8 | S20 drawing (PDF) |
| S33 | BS EN13674-1 | 105 | 58 | 134 | 33.47 | S33 drawing (PDF) |
| S41 R10 | BS EN13674-1 | 125 | 67 | 138 | 41.4 | S41 R10 drawing (PDF) |
| S41 R14 | BS EN13674-1 | 125 | 67 | 138 | 40.95 | S41 R14 drawing (PDF) |
| S49 | BS EN13674-1 | 125 | 67 | 149 | 49.43 | S49 drawing (PDF) |
| S49T [49 E2] | BS EN13674-1 | 125 | 67 | 149 | 49.43 | S49T [49 E2] drawing (PDF) |
| S54 | BS EN13674-1 | 125 | 67 | 154 | 54.5 | S54 drawing (PDF) |
| S64 | BS EN13674-1 | 150 | 73.9 | 172 | 64.9 | S64 drawing (PDF) |
| SD100 | DIN 536 | 200 | 100 | 95 | 75.2 | Request drawing (PDF) |
| SD65 | DIN 536 | 175 | 65 | 75 | 43.2 | Request drawing (PDF) |
| SD75 | DIN 536 | 200 | 75 | 85 | 57.1 | Request drawing (PDF) |
| U33(46E2) | BS EN13674-1 | 134 | 62 | 145 | 46.3 | Request drawing (PDF) |
| U36 | BS EN13674-1 | 140 | 64.9 | 153 | 50.6 | Request drawing (PDF) |
| U50E(50E1) | BS EN13674-1 | 134 | 65 | 153 | 50.4 | Request drawing (PDF) |
| U55(55E1) | BS EN13674-1 | 134 | 62 | 155 | 56 | Request drawing (PDF) |
| UIC50 | UIC 860 | 125 | 70 | 152 | 50.2 | UIC50 drawing (PDF) |
| UIC54 | BS EN13674-1 | 140 | 70 | 159 | 54.4 | UIC54 drawing (PDF) |
| UIC54E | BS EN13674-1 | 125 | 67 | 161 | 53.9 | UIC54E drawing (PDF) |
| UIC60 | BS EN13674-1 | 150 | 72 | 172 | 60.21 | UIC60 drawing (PDF) |
| BRITISH STANDARD (BS) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| BS 100 A | BS 693:1988 | 134 | 70 | 152.4 | 50.4 | Request drawing (PDF) |
| BS 100 A | BS 693:1988 | 134 | 70 | 152.4 | 50.4 | Request drawing (PDF) |
| BS 105 A | BS 11 1959 | 136.5 | 69.9 | 155.6 | 52.2 | Request drawing (PDF) |
| BS 110 A | BS 11 1985 | 139.7 | 69.9 | 158.8 | 54.5 | Request drawing (PDF) |
| BS 113 A | BS 11 1985 | 139.7 | 69.9 | 158.8 | 56.4 | Request drawing (PDF) |
| BS 13 BR | CES 2 1987 | 92 | 37.7 | 48 | 13.3 | BS 13 BR drawing (PDF) |
| BS 16 BR | CES 2 1987 | 108 | 44.9 | 54 | 16 | BS 16 BR drawing (PDF) |
| BS 20 BR | CES 2 1987 | 127 | 50.8 | 55.5 | 19.9 | BS 20 BR drawing (PDF) |
| BS 20 M | BS 248: 1969 | 55.6 | 31 | 65.1 | 9.9 | Request drawing (PDF) |
| BS 28 BR | CES 2 1987 | 152 | 50.75 | 67 | 28.6 | BS 28 BR drawing (PDF) |
| BS 30 M | BS 248: 1969 | 69.9 | 38.1 | 75.4 | 14.9 | Request drawing (PDF) |
| BS 30 O | BS 11 | 76.2 | 41.3 | 76.2 | 14.9 | Request drawing (PDF) |
| BS 35 BR | CES 2 1987 | 160 | 58.8 | 76 | 35.4 | BS 35 BR drawing (PDF) |
| BS 35 M | BS 248: 1969 | 76.2 | 42.9 | 81 | 17.45 | Request drawing (PDF) |
| BS 50 O | BS 11 1985 | 100 | 52.4 | 100 | 24.8 | Request drawing (PDF) |
| BS 60 A | BS 11 1985 | 109.5 | 57.1 | 114.3 | 30.6 | Request drawing (PDF) |
| BS 60 R | BS 11 1985 | 109.5 | 57.1 | 114.3 | 29.8 | Request drawing (PDF) |
| BS 70 A | BS 11 1985 | 111.1 | 60.3 | 123.8 | 34.8 | Request drawing (PDF) |
| BS 75 R | BS 11 1985 | 122.2 | 61.88 | 128.6 | 37.04 | BS 75 R drawing (PDF) |
| BS 80 A | BS 11 1985 | 117.5 | 63.5 | 133.3 | 39.8 | Request drawing (PDF) |
| BS 80 R | BS 11 1985 | 127 | 63.5 | 133.4 | 39.7 | Request drawing (PDF) |
| BS 89 CR | CES 2 1987 | 178 | 102 | 114 | 89.8 | Request drawing (PDF) |
| BS 90 A | BS 11 1985 | 127 | 66.68 | 142.9 | 45.1 | Request drawing (PDF) |
| BS 95 R | BS 11 1985 | 141.3 | 68.3 | 147.6 | 47.1 | Request drawing (PDF) |
| BS C40 | BS 248: 1969 | 80.6 | 45.6 | 88.1 | 20 | Request drawing (PDF) |
| Ph 37 a | BS 11 | 180 | 135 | 180 | 66.8 | Request drawing (PDF) |
| 50 BR | CES 2 1987 | 165 | 59.27 | 76 | 50.2 | Request drawing (PDF) |
| CHINESE STANDARD (GB) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| 15kg AS | GB/T 11264-1989 | 79.4 | 42.9 | 79.1 | 15.2 | 15kg AS drawing (PDF) |
| 22kg BHP | GB/T 11264-1989 | 93.7 | 50.8 | 93.7 | 22.3 | 22kg BHP drawing (PDF) |
| 31kg AS | GB/T 11264-1989 | 108 | 64 | 118 | 31.5 | Request drawing (PDF) |
| 36kg | GB/T 11264-1989 | 115 | 56.7 | 128 | 36.5 | Request drawing (PDF) |
| 39E1(BS80A) | BS 11 1985 | 117.5 | 63.5 | 133.3 | 39.8 | 39E1(BS80A) drawing (PDF) |
| P12 | GB/T 11264 | 69.85 | 38.1 | 69.85 | 12.2 | P12 drawing (PDF) |
| P15 | GB/T 11264 | 79.37 | 42.86 | 79.37 | 15.2 | P15 drawing (PDF) |
| P22 | GB/T 11264 | 94 | 50.8 | 94 | 22.3 | P22 drawing (PDF) |
| P24 | GB/T 11264 | 92 | 51 | 107 | 24.53 | P24 drawing (PDF) |
| P30 | GB/T 11264 | 107.95 | 60.33 | 107.95 | 30.1 | P30 drawing (PDF) |
| P38 | GB/T 11264 | 114 | 68 | 134 | 38.73 | P38 drawing (PDF) |
| P43 | GB/T 11264 | 114 | 70 | 140 | 44.65 | P43 drawing (PDF) |
| P50 | GB/T 11264 | 132 | 72 | 152 | 50 | P50 drawing (PDF) |
| P6 | GB/T 11264 | 50.8 | 25.4 | 50.8 | 5.98 | P6 drawing (PDF) |
| P60 | GB/T 11264 | 150 | 73 | 176 | 61 | P60 drawing (PDF) |
| P65 | GB/T 11264 | 150 | 75 | 180 | 65.5 | Request drawing (PDF) |
| P75 | GB/T 11264 | 150 | 75 | 192 | 74.6 | P75 drawing (PDF) |
| P8 | GB/T 11264 | 54 | 25 | 65 | 8.42 | P8 drawing (PDF) |
| AUSTRALIAN STANDARD (AS / BHP) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| 41kg AS | AS 1085 | 127 | 64 | 137 | 40.7 | 41kg AS drawing (PDF) |
| 47kg AS | AS E22-1964 | 127 | 70 | 141.3 | 46.8 | Request drawing (PDF) |
| 50kg AS | AS 1085 | 127 | 70 | 154 | 50.8 | Request drawing (PDF) |
| 53kg AS | AS 1085 | 146 | 70 | 157.1 | 53 | Request drawing (PDF) |
| 60kg AS | AS 1085 | 146 | 70 | 170 | 61 | Request drawing (PDF) |
| 66kg BHP | BHP RT STD | 152 | 75.4 | 181 | 65.5 | Request drawing (PDF) |
| 68kg BHP | BHP RT STD | 152.4 | 74.6 | 185.7 | 67.6 | Request drawing (PDF) |
| 73kg BHP | BHP RT STD | 146 | 70 | 157 | 73.4 | Request drawing (PDF) |
| 86kg BHP | BHP RT STD | 165 | 102 | 102 | 85.5 | Request drawing (PDF) |
| JAPANESE STANDARD (JIS) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| JIS-12 kg | JIS E110 | 69.8 | 38.1 | 69.8 | 12.2 | JIS-12 kg drawing (PDF) |
| JIS-15 kg | JIS E1103 | 79.4 | 42.9 | 79.1 | 15.2 | JIS-15 kg drawing (PDF) |
| JIS-22 kg | JIS E1103 | 93.7 | 50.8 | 93.7 | 22.3 | JIS-22 kg drawing (PDF) |
| JIS-30-A kg | JIS E1101 | 108 | 60 | 108 | 30.1 | JIS-30-A kg drawing (PDF) |
| JIS-37-A kg | JIS E1101 | 122 | 63 | 122 | 37.2 | JIS-37-A kg drawing (PDF) |
| JIS-40-N kg | JIS E1101 | 122 | 64 | 140 | 40.9 | JIS-40-N kg drawing (PDF) |
| JIS-50 kg | JIS E1101 1990 | 127 | 63.4 | 144.5 | 50.4 | JIS-50 kg drawing (PDF) |
| JIS-50-N kg | JIS E1101 | 127 | 64 | 153 | 50.4 | JIS-50-N kg drawing (PDF) |
| JIS-60 kg | JIS E1101 | 145 | 64 | 174 | 60.8 | JIS-60 kg drawing (PDF) |
| JKL 100 | JIS E1101 | 170 | 100 | 105 | 67.8 | Request drawing (PDF) |
| JKL 55 | JIS E1101 | 100 | 55 | 85 | 29.5 | Request drawing (PDF) |
| JKL 65 | JIS E1101 | 115 | 65 | 90 | 37.7 | Request drawing (PDF) |
| JKL 80 | JIS E1101 | 140 | 80 | 95 | 49.9 | Request drawing (PDF) |
| JKL 85 | JIS E1101 | 200 | 85.3 | 100 | 80.48 | Request drawing (PDF) |
| SOUTH AFRICAN STANDARD (ISCOR) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| ISCOR-15 | SABS 49 | 76.2 | 41.28 | 76.2 | 14.9 | ISCOR-15 drawing (PDF) |
| ISCOR-22 | SABS 49 | 95 | 50 | 95 | 22.37 | ISCOR-22 drawing (PDF) |
| ISCOR-30 | SABS 49 | 110 | 57 | 110 | 30.15 | ISCOR-30 drawing (PDF) |
| ISCOR-40 | SABS 49 | 127 | 63.5 | 127 | 40.31 | ISCOR-40 drawing (PDF) |
| ISCOR-48 | SABS 49 | 127 | 68 | 150 | 47.6 | ISCOR-48 drawing (PDF) |
| ISCOR-57 | SABS 49 | 140 | 70 | 165 | 57.4 | ISCOR-57 drawing (PDF) |
| ISCOR-64 | SABS 49 | 190 | 75.67 | 85 | 64.2 | ISCOR-64 drawing (PDF) |
| ISCOR-88 | SABS 49 | 200 | 100.86 | 95 | 88.1 | ISCOR-88 drawing (PDF) |
| INDIAN STANDARD (IRS / IS) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| 45kg/m | IS 3443-1980 | 136.5 | 66.7 | 142.9 | 48.28 | Request drawing (PDF) |
| 52.1kg/m | IS 3443-1980 | 122.2 | 73 | 125.4 | 51.43 | Request drawing (PDF) |
| 52.2kg/m | IS 3443-1980 | 122.2 | 73 | 125.4 | 51.72 | Request drawing (PDF) |
| 52kg/m | IRS T-12/96 | 136 | 67 | 156 | 51.68 | Request drawing (PDF) |
| NP 46 | IRS T-12/96 | 120 | 72 | 142 | 46.6 | Request drawing (PDF) |
| OTHER RAIL SECTIONS | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| 48.5kg | MSZ 2575-84 | 120 | 66.7 | 148 | 48.5 | Request drawing (PDF) |
| 54kg | MSZ 2577-79 | 140 | 70 | 159 | 54.8 | Request drawing (PDF) |
| AS 86 | TRADE ARBED | 150 | 101.6 | 152.5 | 85.84 | AS 86 drawing (PDF) |
| BV50-SJ50 | GOST | 133 | 70 | 155 | 50 | Request drawing (PDF) |
| G51 | CORUS RAIL | 149 | 126 | 152 | 54.67 | Request drawing (PDF) |
| LK1 | UNKNOWN | 156 | 115 | 72 | 59 | Request drawing (PDF) |
| RG29 | TRADE ARBED | 150 | 49 | 65 | 28.97 | RG29 drawing (PDF) |
No matching rails found.
Light rails are commonly used in underground mining, and they are also ideal for light transport systems such as subways, trams, and commuter trains. We supply both European and American rail profiles.
Rails are available in standard lengths and steel grades, or can be custom-made to meet specific project requirements. In our modern workshop, rails can be cut, drilled, milled, bent, or treated according to customer needs, thanks to our skilled team and advanced equipment.
LIGHT RAIL SPECIFICATIONS
| CHINESE STANDARD (GB/T 11264) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
|---|---|---|---|---|---|---|
| 15kg | GB/T 11264-1989 | 66 | 42 | 84 | 15.2 | Request drawing (PDF) |
| 22kg BHP | GB/T 11264-1989 | 93.7 | 50.8 | 93.7 | 22.3 | 22kg BHP drawing (PDF) |
| 26kg | GB/T 11264-1989 | 100 | 50 | 110 | 26.27 | Request drawing (PDF) |
| 30kg | GB/T 11264-1989 | 106 | 56 | 125.5 | 30 | Request drawing (PDF) |
| 31kg AS | GB/T 11264-1989 | 108 | 64 | 118 | 31.5 | Request drawing (PDF) |
| P6 | GB/T 11264 | 50.8 | 25.4 | 50.8 | 5.98 | P6 drawing (PDF) |
| P8 | GB/T 11264 | 54 | 25 | 65 | 8.42 | P8 drawing (PDF) |
| P12 | GB/T 11264 | 69.85 | 38.1 | 69.85 | 12.2 | P12 drawing (PDF) |
| P15 | GB/T 11264 | 79.37 | 42.86 | 79.37 | 15.2 | P15 drawing (PDF) |
| P22 | GB/T 11264 | 94 | 50.8 | 94 | 22.3 | P22 drawing (PDF) |
| P24 | GB/T 11264 | 92 | 51 | 107 | 24.53 | P24 drawing (PDF) |
| AMERICAN STANDARD (ASCE) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| ASCE 25 | ASTM A1 | 69.8 | 38.1 | 69.8 | 12.4 | ASCE 25 drawing (PDF) |
| ASCE 30 | ASTM A1 | 79.4 | 42.9 | 79.4 | 15.2 | ASCE 30 drawing (PDF) |
| ASCE 40 | ASTM A1 | 88.9 | 47.6 | 88.9 | 19.9 | ASCE 40 drawing (PDF) |
| BRITISH STANDARD (BS) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| BS 13 BR | CES 2 1987 | 92 | 37.7 | 48 | 13.3 | BS 13 BR drawing (PDF) |
| BS 16 BR | CES 2 1987 | 108 | 44.9 | 54 | 16 | BS 16 BR drawing (PDF) |
| BS 20 BR | CES 2 1987 | 127 | 50.8 | 55.5 | 19.9 | BS 20 BR drawing (PDF) |
| BS 20 M | BS 248: 1969 | 55.6 | 31 | 65.1 | 9.9 | Request drawing (PDF) |
| BS 28 BR | CES 2 1987 | 152 | 50.75 | 67 | 28.6 | BS 28 BR drawing (PDF) |
| BS 30 O | BS 11 | 76.2 | 41.3 | 76.2 | 14.9 | Request drawing (PDF) |
| BS 35 BR | CES 2 1987 | 160 | 58.8 | 76 | 35.4 | BS 35 BR drawing (PDF) |
| BS 50 O | BS 11 1985 | 100 | 52.4 | 100 | 24.8 | Request drawing (PDF) |
| BS 56 CR | CES 2 1987 | 171 | 76 | 101.5 | 56.8 | Request drawing (PDF) |
| BS 70 A | BS 11 1985 | 111.1 | 60.3 | 123.8 | 34.8 | Request drawing (PDF) |
| BS C40 | BS 248: 1969 | 80.6 | 45.6 | 88.1 | 20 | Request drawing (PDF) |
| EUROPEAN & DIN STANDARD | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| A45 | DIN 536 | 125 | 45 | 55 | 22.1 | A45 drawing (PDF) |
| S10 | BS EN13674-1 | 58 | 32 | 70 | 10.1 | S10 drawing (PDF) |
| S14 | BS EN13674-1 | 70 | 38 | 80 | 14 | S14 drawing (PDF) |
| S18 | BS EN13674-1 | 82 | 43 | 93 | 18.3 | S18 drawing (PDF) |
| 27 UNI (27E1) | BS EN13674-4 | 95 | 50 | 120 | 27.2 | Request drawing (PDF) |
| JAPANESE STANDARD (JIS) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| JIS-12 kg | JIS E110 | 69.8 | 38.1 | 69.8 | 12.2 | JIS-12 kg drawing (PDF) |
| JIS-15 kg | JIS E1103 | 79.4 | 42.9 | 79.1 | 15.2 | JIS-15 kg drawing (PDF) |
| JIS-22 kg | JIS E1103 | 93.7 | 50.8 | 93.7 | 22.3 | JIS-22 kg drawing (PDF) |
| SOUTH AFRICAN (ISCOR) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| ISCOR-15 | SABS 49 | 76.2 | 41.28 | 76.2 | 14.9 | ISCOR-15 drawing (PDF) |
| ISCOR-22 | SABS 49 | 95 | 50 | 95 | 22.37 | ISCOR-22 drawing (PDF) |
| GROOVED / SPECIAL SECTIONS | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
| RI 59 N | EN1411:2006+A1:2009 | 180 | 113 | 180 | 58.85 | Request drawing (PDF) |
| Ri 60 | EN1411:2006+A1:2009 | 180 | 113 | 180 | 60.6 | Request drawing (PDF) |
| Ri 60 N | EN1411:2006+A1:2009 | 180 | 112.1 | 180 | 59.7 | Request drawing (PDF) |
No matching light rails found.
Transport rails are designed for heavy-duty applications in industrial facilities, ports, railways, and urban transit systems. We offer a range of European and American profiles to suit different operational needs.
Our rails come in various standard lengths and steel grades, and can also be custom-engineered to meet specific project requirements. In our fully equipped workshop, rails can be cut, drilled, milled, bent, or otherwise processed, ensuring precise solutions for every transport challenge.
TRAM RAIL SPECIFICATIONS
| GROOVED TRAM RAILS (BS EN13674-1) | ||||||
| Rail Model | Standard | Base (F) | Head (C) | Height (A) | Mass (kg/m) | Drawing |
|---|---|---|---|---|---|---|
| S 30 | BS EN13674-1 | 108 | 60 | 108 | 30.03 | S 30 drawing (PDF) |
| S 49 | BS EN13674-1 | 125 | 65.3 | 149 | 49.4 | S 49 drawing (PDF) |
| S 54 | BS EN13674-1 | 125 | 67 | 154 | 54.5 | S 54 drawing (PDF) |
| S 60 | BS EN13674-1 | 150 | 72 | 172 | 60.3 | Request drawing (PDF) |
| S 64 | BS EN13674-1 | 150 | 73.9 | 172 | 64.9 | S 64 drawing (PDF) |
No matching tram rails found.
Forgesail | Professional Crane Rail Solutions for Reliable, Efficient Heavy-Duty Industrial Operations
We provide one-stop crane rail solutions tailored for heavy-duty industrial applications. From crane rail profile selection and quality assurance to full system integration, we comprehensively resolve your challenges related to equipment safety, operational efficiency, durability, and on-time project delivery.
As a dedicated crane rail specialist, we match your actual operating conditions—including ports, steel mills, and manufacturing facilities—with high-quality steel crane rails that comply with major international standards, ensuring full compatibility with your existing equipment and infrastructure while eliminating compatibility risks:
- DIN 536 Series (A75/A100/A120) for durable performance in European heavy-duty crane rail applications
- QU Series (QU80/QU100/QU120) designed for heavy-duty crane rail tracks meeting both Chinese and international standards
- ASCE & JIS standard crane rails that align with U.S. and Japanese engineering specifications for broad industrial versatility
We enforce strict quality control on every crane rail to deliver exceptional hardness, wear resistance, and straightness, solving common issues such as wear and deformation under heavy loads. We also supply complete crane rail fastening systems, including adjustable rail clips and specialized rail pads, for precision installation. These crane rail solutions effectively reduce vibration, minimize wear, and significantly extend crane rail service life, supporting safe and efficient operation of gantry cranes and overhead cranes.
Backed by a proven track record of delivering large-scale global crane rail projects—including the King Salman Global Maritime Industries Complex in Saudi Arabia—we have the expertise to handle world-class infrastructure projects. With factory-direct pricing and fast global shipping, we help you control costs and stay on schedule, delivering stable, reliable support for your heavy-duty crane rail systems.
Reference Projects
