Other Crane Rail Fasteners & Hardware
Our general fastener range follows the supplier catalogue: two material parts — carbon steel and stainless steel — each organised into eleven product series. Every item is produced to its GB/T, DIN or WI standard reference, with mill test certificates traceable to heat number. Send a drawing, a standard number or a bill of materials and we will quote against it.
Carbon Steel Series
Grades 4.8 to 12.9, self-colour, black oxide, zinc plated or hot-dip galvanized. Every series below is also available in stainless steel under Part 02.
Bolts8 items · hex head, special head, anchor and bent forms

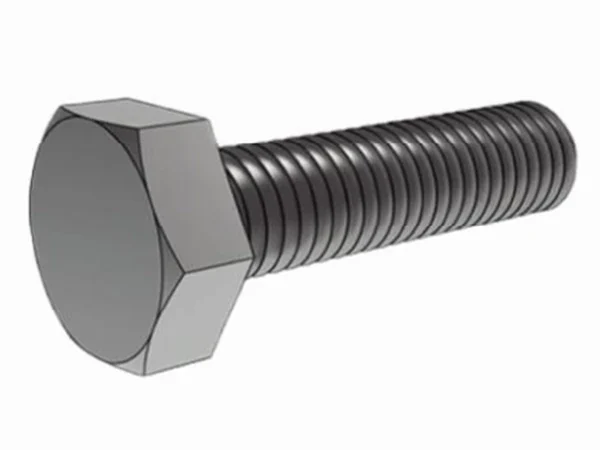

Hex Head BoltsGB 30 · GB/T 5782 & 5783 · DIN 931/933
The general-purpose hex head bolt, partially threaded (GB/T 5782 / DIN 931) or fully threaded (GB/T 5783 / DIN 933); the legacy GB 30 type is kept for older equipment.
M4 – M42 · Gr. 4.8 – 10.9 · self colour / black / HDG / Zn
View details

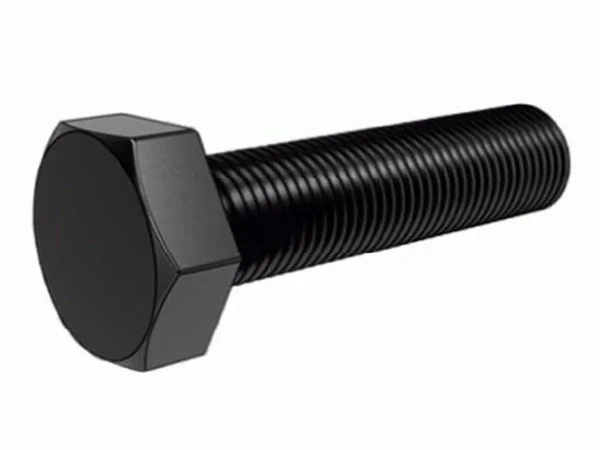

Fine Pitch Hex Head BoltsGB/T 5785 & 5786
Hex head bolts with fine-pitch threads for high-tension joints and fine adjustment, where a coarse thread would loosen under vibration or where the clamp length is short.
M8 – M30 · Gr. 8.8 / 10.9 / 12.9
View details

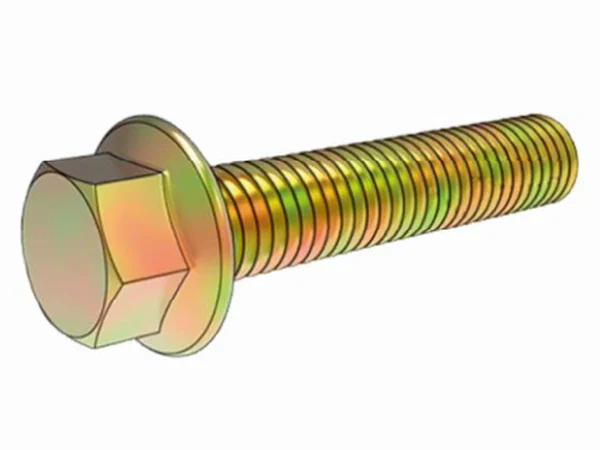

Hex Flange BoltsGB/T 5787
The flange forged under the head spreads the clamping load and replaces a separate washer; the serrated bearing face grips the joint and resists loosening on vibrating assemblies.
M6 – M12 · Gr. 8.8
View details
Square Head BoltsGB 35
Large flat wrench faces let the bolt be held from two sides in blind locations — the traditional choice for clamping fixtures, press tooling and T-slot work.
M8 – M20 · Gr. 8.8
View details

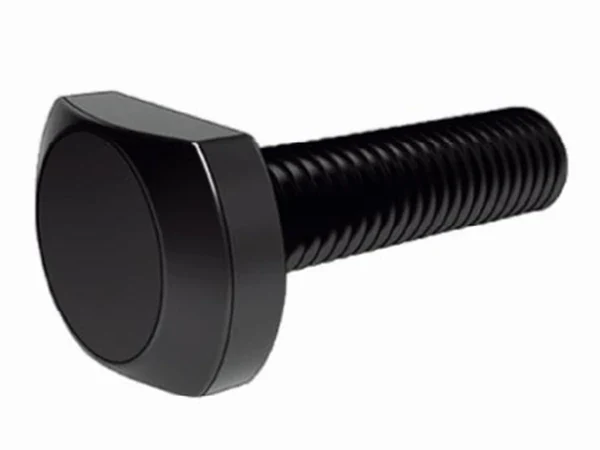

T-Head BoltsGB/T 37
The forged T-head drops into a T-slot or clip channel and seats with a quarter turn — the standard bolt for machine tables, fixtures and rail clamping plates. See also our rail fastening bolts.
M8 – M36 · Gr. 6.8 / 8.8
View details

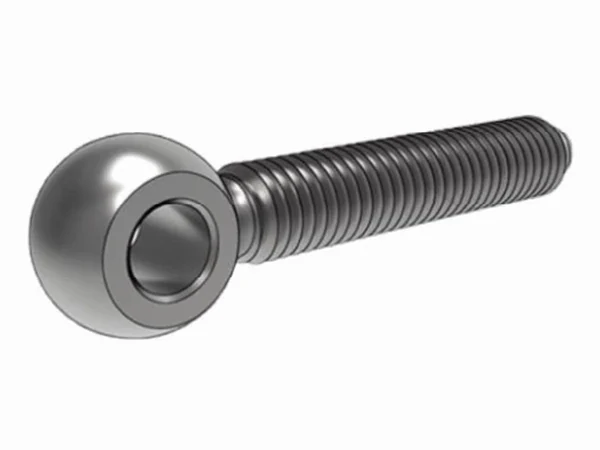

Pivot Bolts (Swing Bolts)GB/T 798
The eye-shaped head swivels freely on the shank, so the bolt can be dropped over a pin and tightened with a single spanner — used on clamps, quick-release covers and latch plates.
M8 – M36 · Gr. 4.6 / 4.8
View details

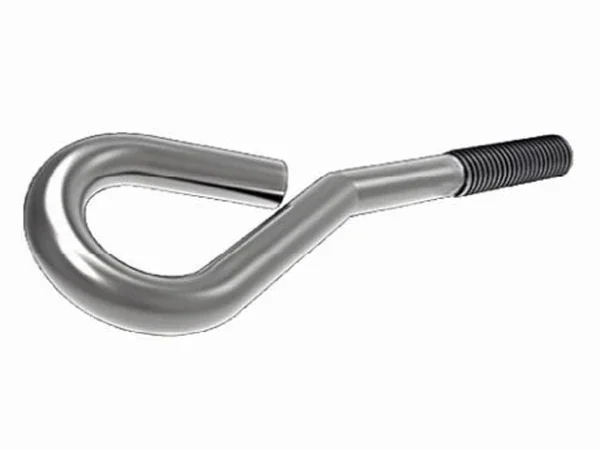

Anchor Bolts (Foundation Bolts)GB/T 799
Cast-in foundation bolts for baseplates, rail plinths and equipment feet. For the full bent range — split, J, U and C forms with corrugated sleeves — see our rail anchor systems page.
M12 – M48 · Gr. 4.8
View details

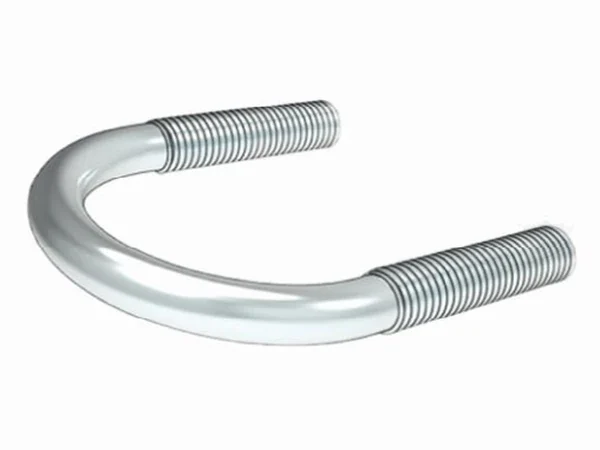

U-BoltsW 01.6 · to drawing
Formed into a U to clamp pipes, tubes and steel sections directly onto a plate or foundation. Inside radius, leg length and pitch made to your drawing, thread rolled.
M6 – M24 · Gr. 4.8 · self colour / HDG
View detailsStuds & Threaded Rod3 items

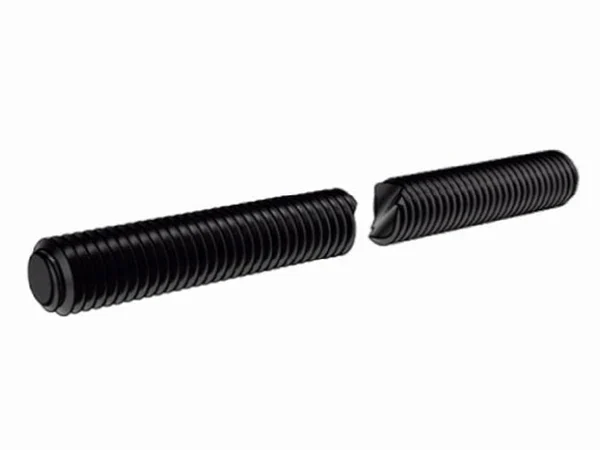

Threaded Rods (Full-Thread Studs)GB/T 15389
Continuously threaded rod supplied in stock lengths or cut to size — the base material for hangers, supports and any stud bolt made to a specific grip length.
M3 – M64 · Gr. 8.8 / 10.9 / 12.9
View details

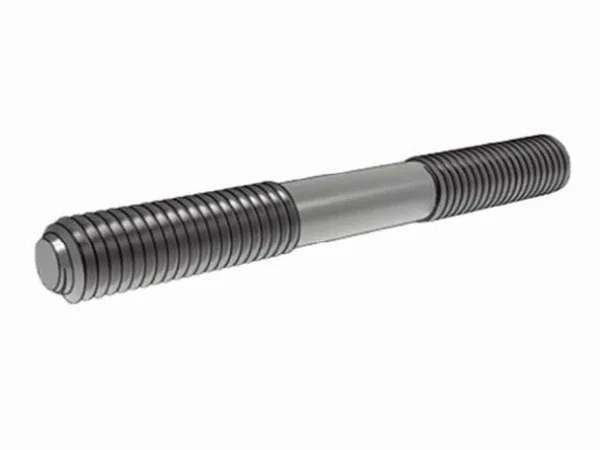

Double End StudsGB/T 901
Threaded at both ends with a plain grip in the middle: the stud screws into the tapped body and takes a nut on top — standard practice for flanged joints and housings.
M8 – M45 · Gr. 4.8 / 8.8 / 10.9
View details

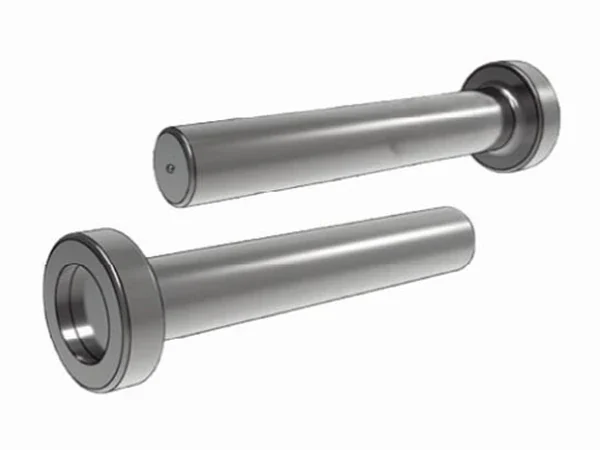

Arc Weld Studs (Headed Shear Studs)GB/T 10433
Welded through a ceramic ferrule onto steel beams to act as shear connectors in composite steel-concrete decks and for studding of plant components.
M13 – M19 · Gr. 4.8 · self colour
View detailsScrews5 items · socket, cross recessed and set screws

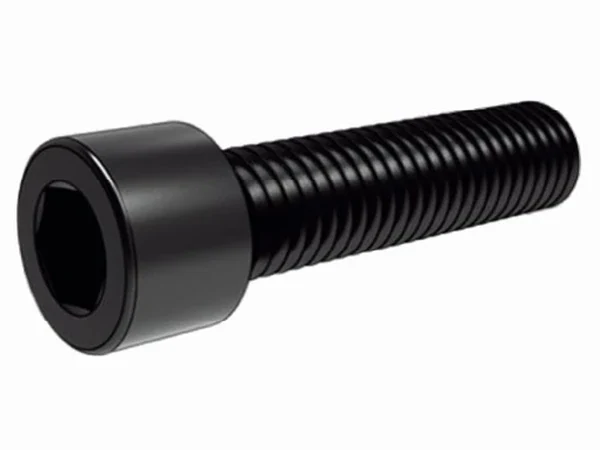

Socket Head Cap ScrewsGB/T 70.1 · DIN 912
High-strength cylindrical-head screws driven by a hex key; the compact head carries high torque and fits into pockets — the machine builder's screw, grades 8.8 to 12.9.
M3 – M56 · Gr. 8.8 / 10.9 / 12.9
View details

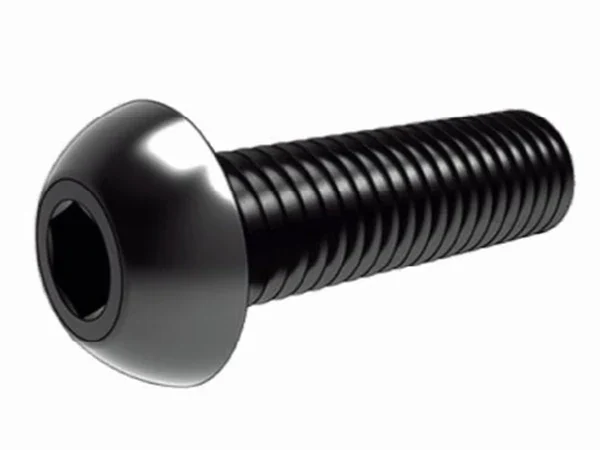

Socket Button Head ScrewsISO 7380
Low-profile domed head with a smooth appearance; for guards, covers and anywhere a protruding hex head or sharp edge is unwanted.
M4 – M20 · Gr. 8.8
View details

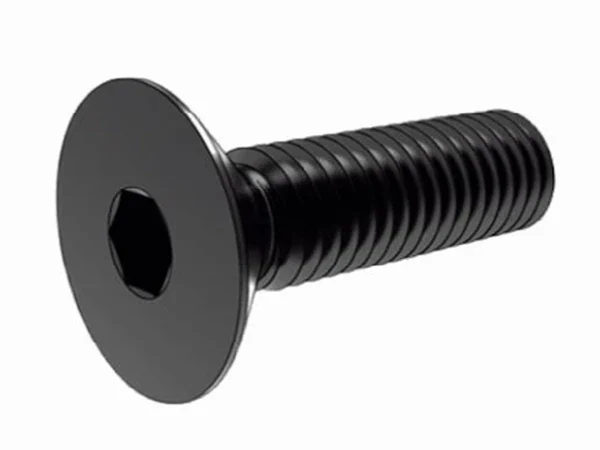

Socket Countersunk Head ScrewsDIN 7991
90° countersunk head sits flush with the surface — for sliding parts, guide ways and any assembly where clearance above the head is critical.
M3 – M24 · Gr. 8.8 / 10.9
View details

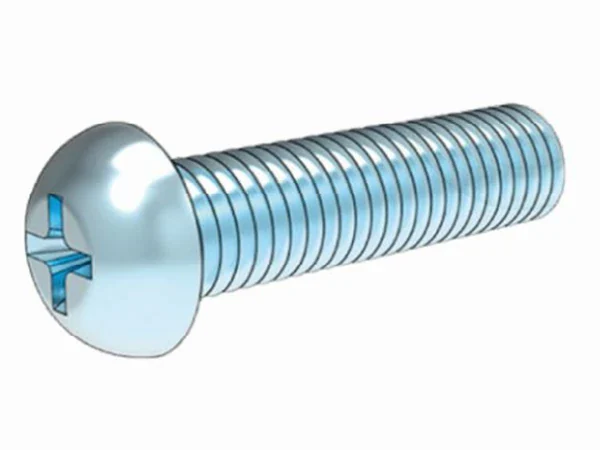

Cross Recessed Pan & Countersunk Head ScrewsGB/T 818 · GB/T 819
Machine screws for light-duty metal and panel assembly, driven with a Phillips bit; pan head sits proud, countersunk head sits flush with the countersink.
M3 – M12 · Gr. 4.8 · white Zn
View details

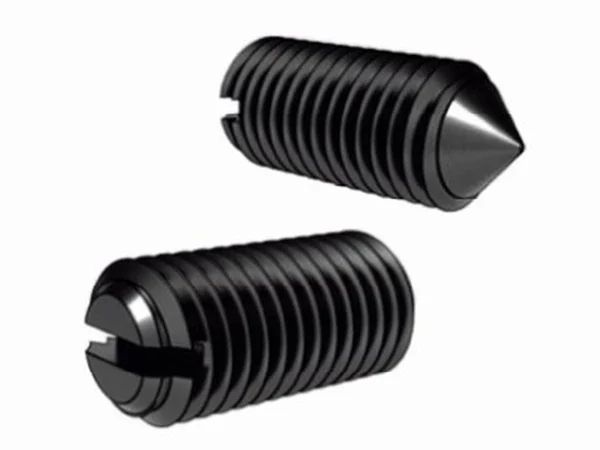

Set ScrewsGB/T 71 · 73 · 77 · 78 · DIN 916
Headless screws that lock components onto shafts and in tapped holes. Point options: cone point digs into the shaft, flat point bears on the surface, cup point for general grip; slotted and hex socket drives.
M3 – M16 · Gr. 4.8 / 14H / 45H
View detailsNuts11 items · hex, flange, lock, weld and lifting

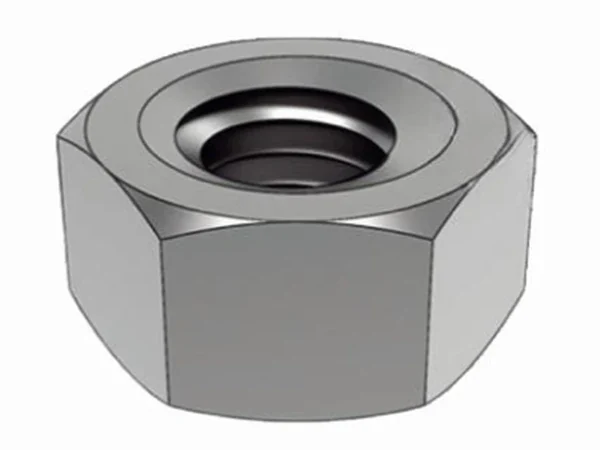

Hex Nuts, Style 1GB/T 6170 · GB 52 · fine pitch GB/T 6171
The standard hex nut in coarse thread, with fine pitch available; matched to the hex bolt series in grades 4.8 to 10, self colour, black, zinc plated or hot-dip galvanized.
M5 – M90 · Gr. 4 / 5 / 8 / 10
View details

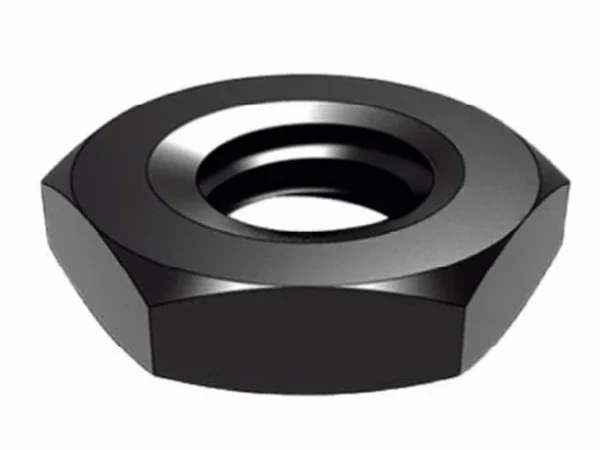

Hex Thin Nuts (Jam Nuts)GB/T 6172.1 · fine pitch GB/T 6173
Reduced-height nuts used as a jam nut against a full nut, or wherever the installed height of a standard nut will not fit.
M8 – M56 · Gr. 4 / 8
View details

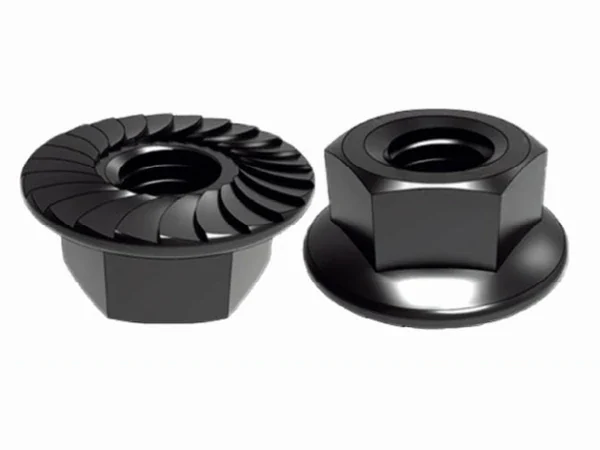

Hex Flange Nuts, Style 2GB/T 6177.1
The flange under the nut works as an integrated washer and spreads the load; on the serrated version the bearing face bites into the joint to resist vibration.
M3 – M20 · Gr. 8 / 10
View details

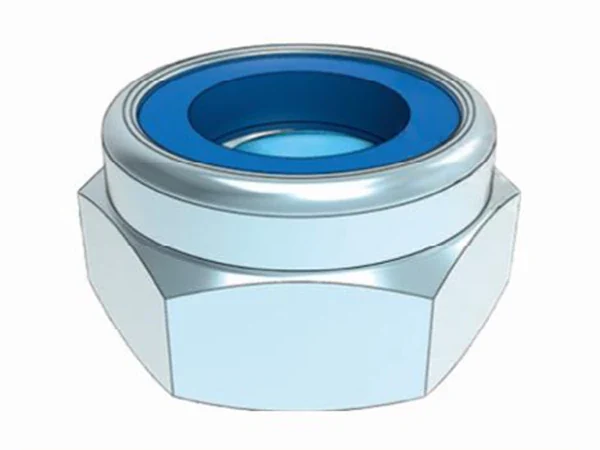

Nylon Insert Hex Lock NutsDIN 985
Prevailing-torque lock nut with a nylon collar: self-locking at any position on the thread without damaging the bolt. Service temperature limited to about +120 °C.
M3 – M64 · Gr. 4.8 / 10 / A2-50 / A2-70
View details

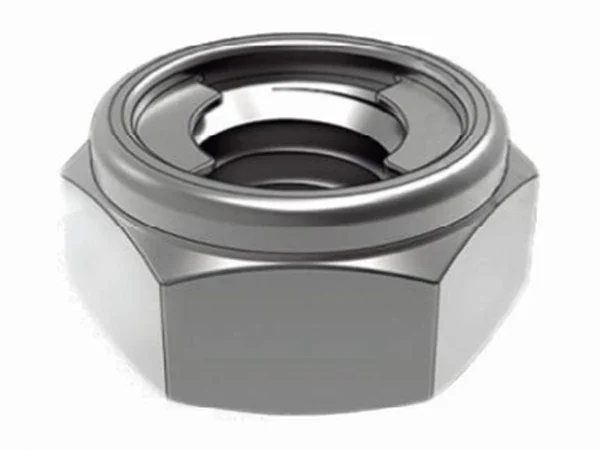

All-Metal Hex Lock NutsGB/T 6184
All-metal prevailing-torque nut — the deformed thread section keeps the locking action at elevated temperature and in oil, where a nylon collar would fail.
M5 – M16 · Gr. 8 / 10
View details

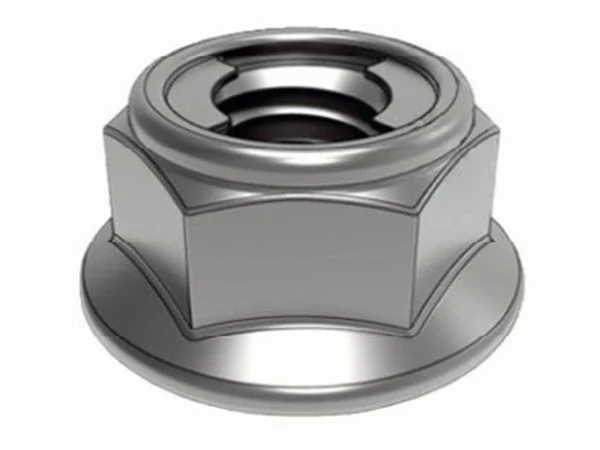

All-Metal Flange Lock NutsGB/T 6187
All-metal lock nut with an integral flange — one part provides both preload retention and load spreading on sheet and thin-flange joints.
M5 – M16 · Gr. 8
View details

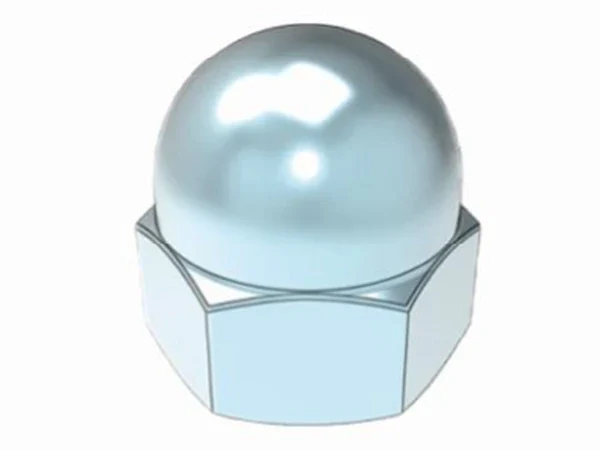

Domed Cap NutsGB/T 923
The enclosed dome covers the thread end — protection against injury and corrosion plus a clean appearance on exposed fasteners.
M4 – M20 · Gr. 4 / 8
View details

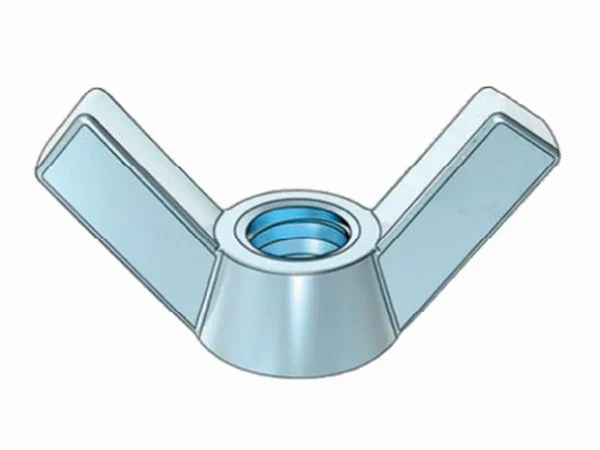

Wing NutsGB/T 62.2
Square-wing type tightened by hand — for covers, clamps and adjustments that are opened regularly without tools.
M3 – M16 · Gr. A3 / self colour
View details

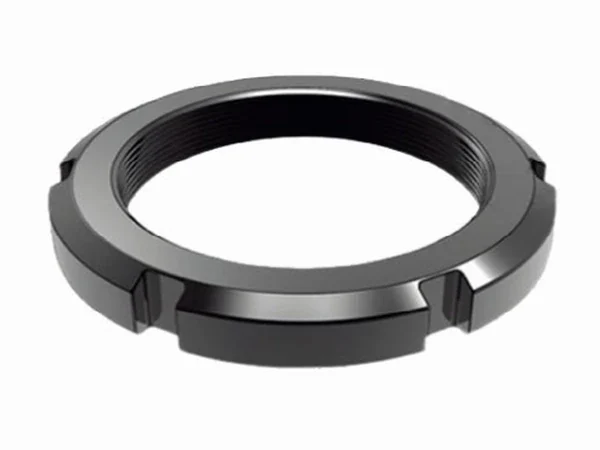

Round NutsGB/T 812
Slotted round nuts for shaft ends and bearing adjustment, tightened with a hook spanner and locked by a tab washer against the keyway.
M10 – M200 · self colour
View details

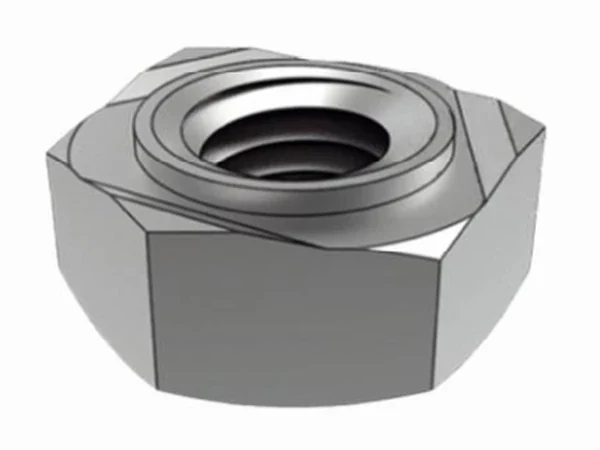

Weld NutsGB/T 13680 (square, type A) · GB/T 13681 (hex)
Welded to sheet and plate to create a permanent machine thread where the back of the joint cannot be reached — the basis of most welded fastener panels.
M4 – M16 · self colour
View details

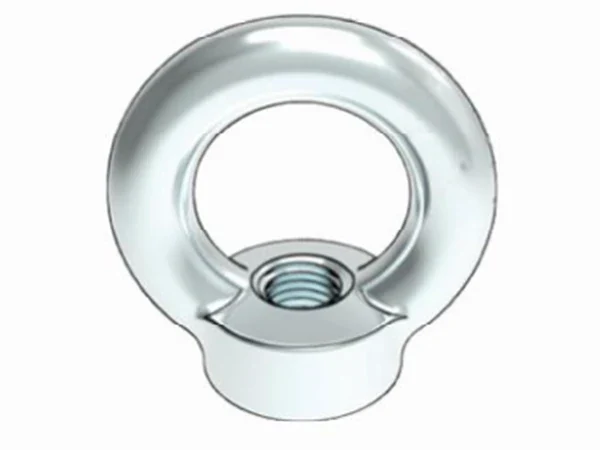

Eye Nuts (Lifting)DIN 582
Forged lifting eye nuts with metric threads for hoisting points. Observe the marked working load limit, seat fully on the face and never side-load a single eye.
M6 – M48 · Gr. 4
View detailsSelf-Tapping & Self-Drilling Screws5 items · sheet and light section fixings

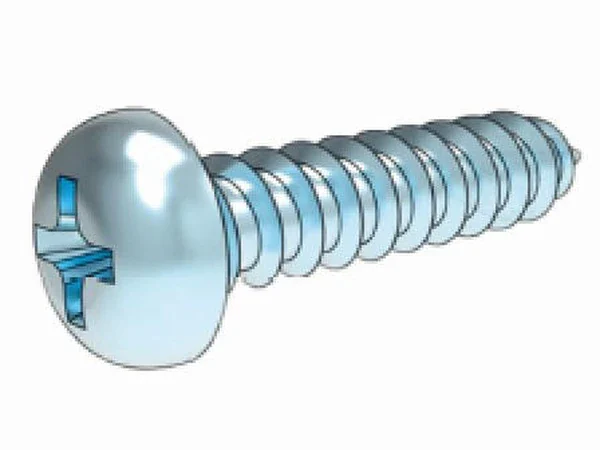

Pan Head Self-Tapping ScrewsGB/T 845
Form their own thread in sheet metal, plastics and plywood — no tapping operation needed. Cross recessed pan head, case-hardened.
ST3.5 – ST6 · case hardened · blue-white Zn
View details

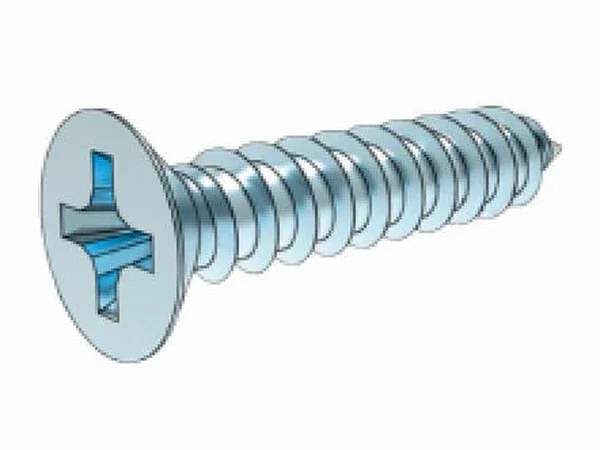

Countersunk Head Self-Tapping ScrewsGB/T 846
Flat countersunk version of the self-tapping screw for flush panel and trim fixing in sheet and plastic.
ST3.5 – ST6 · case hardened · blue-white Zn
View details

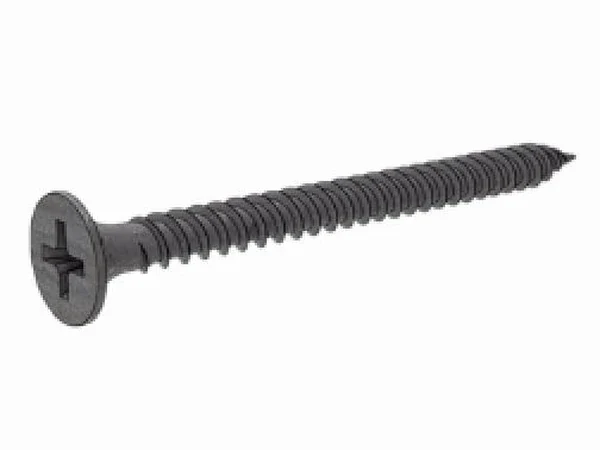

Drywall ScrewsGB/T 14210
Bugle-head screw for fixing gypsum board to steel or timber studs; the curved bearing face spreads the pressure so the paper face does not tear.
M3.5 · case hardened · black phosphate
View details

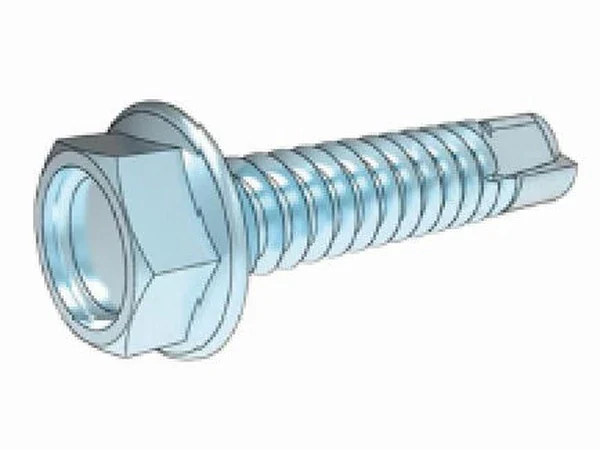

Hex Washer Head Self-Drilling ScrewsGB/T 15856.4
Drill, tap and fasten in a single operation with an impact driver — the standard fixing for roofing sheets and cladding on purlins.
ST4.2 – ST6.3 · case hardened · Zn
View details

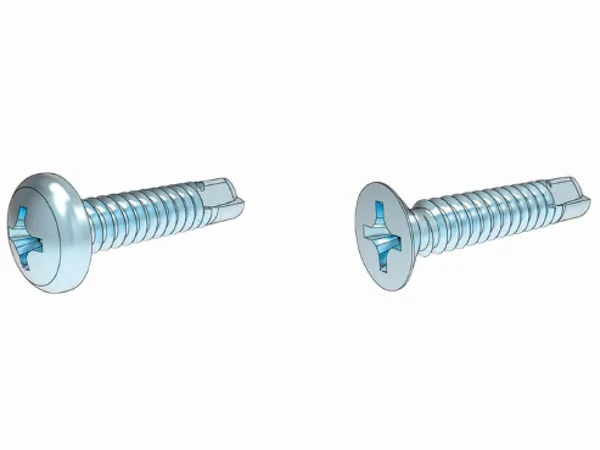

Pan & Countersunk Self-Drilling ScrewsGB/T 15856.1 · 15856.2
Self-drilling screws with cross recessed heads for light-gauge sheet work where a hex head is not wanted.
ST4.2 – ST5.3 · case hardened · Zn
View detailsWashers4 items

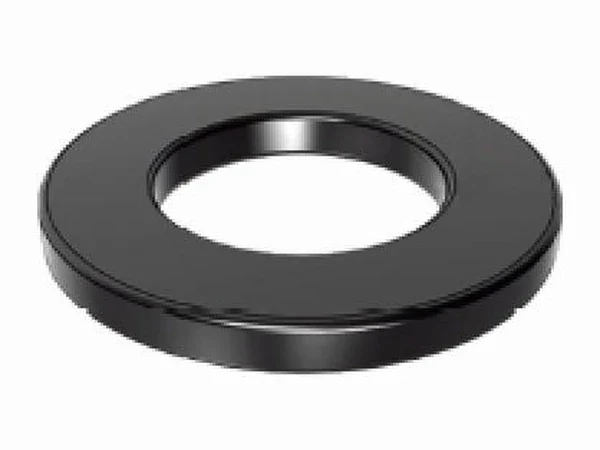

Flat Washers, Grade AGB/T 97.1
Precision flat washers that spread the clamping load and protect the fastened surface; hardened versions for structural bolting.
Ø3 – 64 · 100 HV / 200 HV
View details

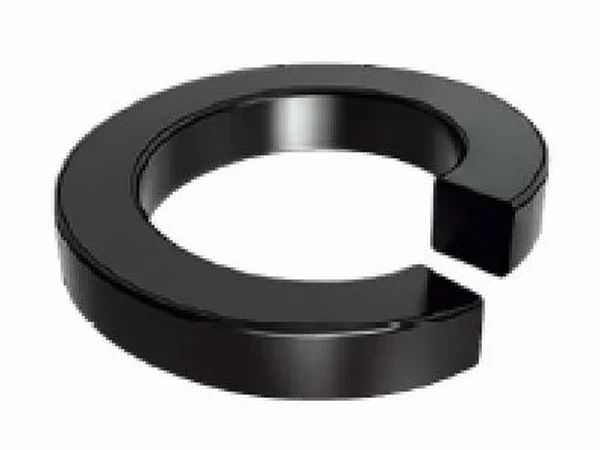

Spring Lock WashersGB/T 93
Helical spring washers that keep tension under slight movement and resist the nut backing off on assemblies subject to vibration.
Ø3 – 64 · 430 – 510 HV
View details

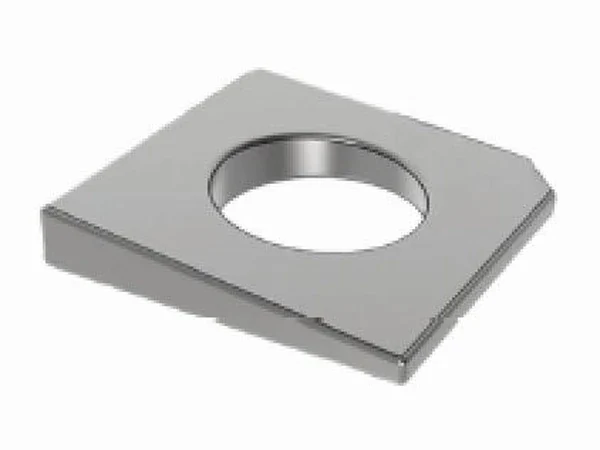

Square Taper WashersGB/T 853
Square washers with a tapered seat that squares up the bolt head or nut on the sloped flange of channel and I-beam sections.
Ø3 – 36 · 100 HV
View details

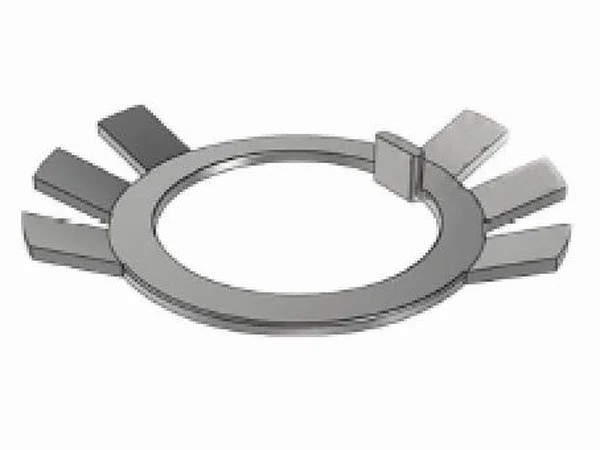

Tab Washers for Round NutsGB/T 859
The internal tab locks into the shaft keyway and the outer tabs are bent up against the round nut flanks, positively locking the adjustment.
Ø10 – 200 · 100 HV
View detailsRetaining Rings3 items

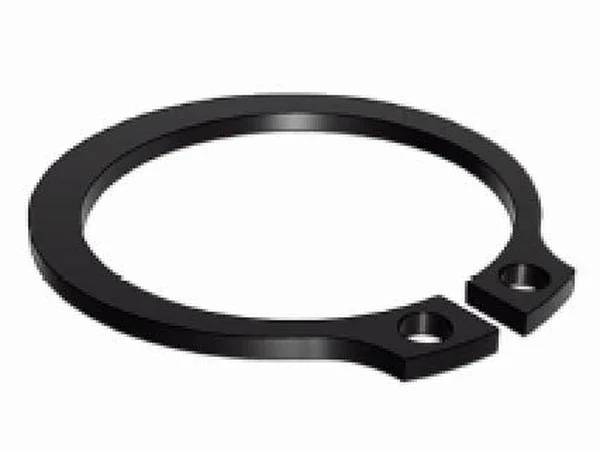

External Retaining Rings (Shafts)GB/T 894.1
Snap into a groove on the shaft to hold bearings, gears and sleeves axially — no shoulder or nut required on the shaft.
Ø8 – 200 · 430 – 510 HV
View details

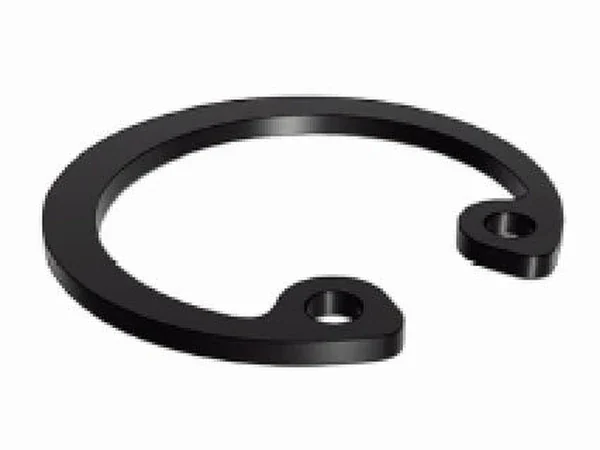

Internal Retaining Rings (Bores)GB/T 893.1
Spring into a groove in the housing bore and locate components from inside the housing — matched to the external series.
Ø8 – 200 · 430 – 510 HV
View details

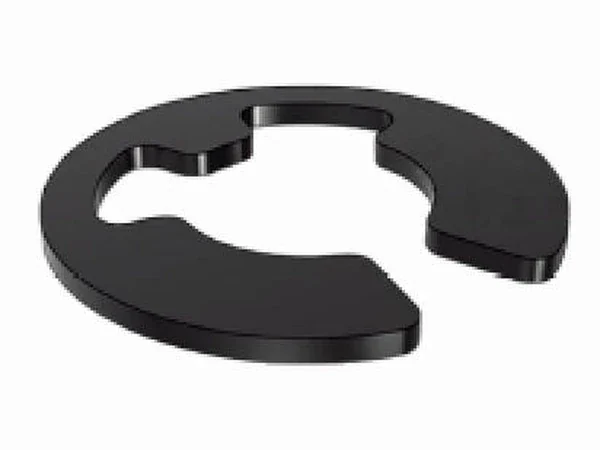

Open Type Retaining RingsGB/T 896
Open rings pushed onto small shafts by hand or with pliers — light-duty axial retention on small mechanisms.
Ø3 – 12 · black / self colour
View detailsKeys & Pins7 items

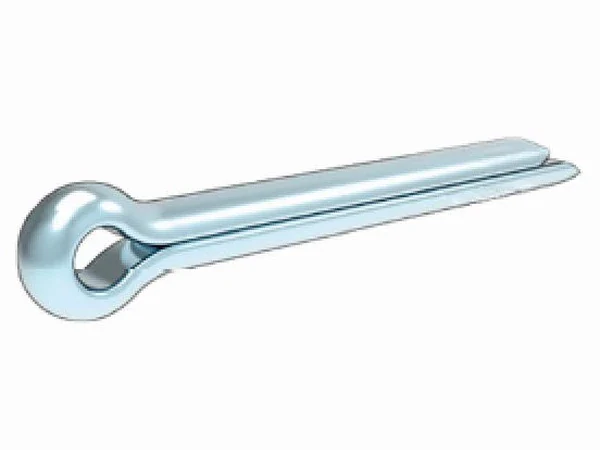

Split Pins (Cotter Pins)GB/T 91
Folded-leg pins passed through a castellated nut and cross-drilled bolt to positively prevent the nut backing off; the legs are bent apart after fitting.
Ø1 – 16 · self colour
View details

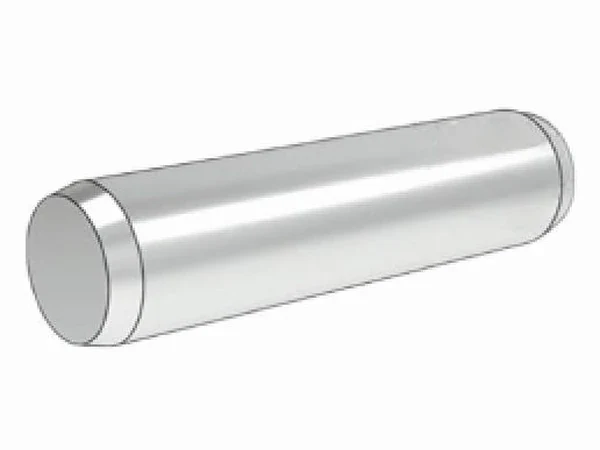

Parallel Pins (Dowel Pins)GB/T 119.1, m6 tolerance
Precision ground pins pressed into reamed holes for repeatable positioning of mating parts — the reference location in tooling and machine assembly.
Ø3 – 20 · polished, unhardened
View details

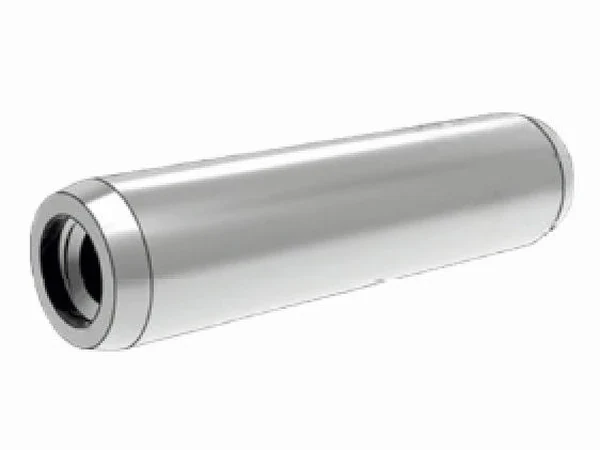

Threaded Parallel Pins (Pull-Out Dowels)GB/T 120.1
Dowel pins with an internal thread so they can be screwed out of blind reamed holes — for tooling that is stripped regularly.
Ø6 – 20 · polished
View details

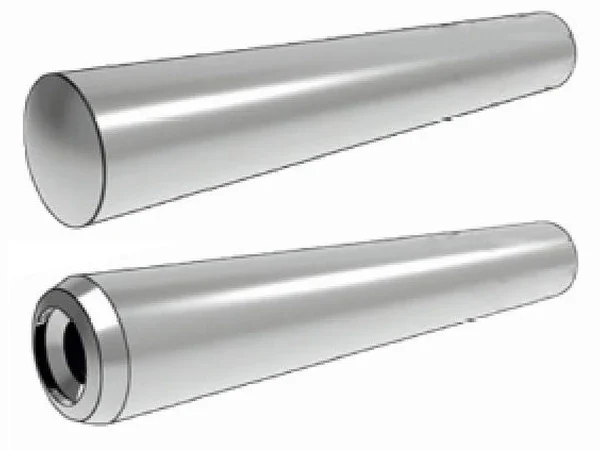

Taper PinsGB/T 117 · threaded version GB/T 118
The 1:50 taper self-locks in the tapered hole and is driven out from the small end; the threaded version is withdrawn through its internal thread from blind holes.
Ø3 – 20 · polished
View details

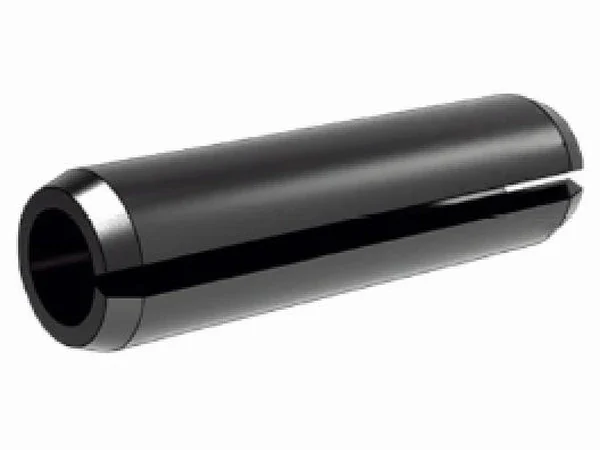

Slotted Spring Pins, Heavy DutyGB/T 879.1
Compress on insertion and grip by spring force — tolerant of hole tolerance and shock loading, with no reaming operation needed.
Ø2.5 – 16 · 420 – 560 HV30
View details

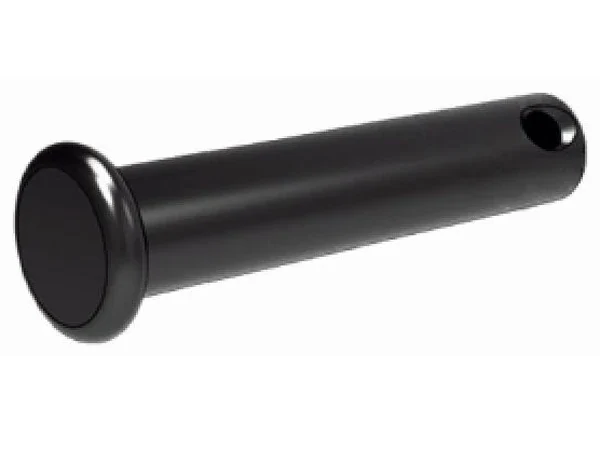

Clevis PinsGB/T 882
Headed pins retained by a split pin through the cross hole — the pivot of linkages, toggles, cylinder eyes and rigging links.
Ø6 – 20 · self colour
View details

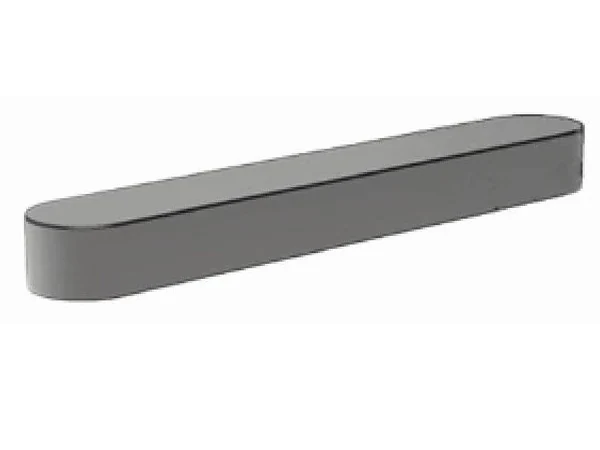

Parallel Keys, Type AGB/T 1096
Square-section machine keys that transmit torque between shaft and hub; type A has rounded ends to match an end-milled keyway.
From 6 × 6 · self colour
View detailsBolt & Screw Assemblies5 items · captive washer and structural sets

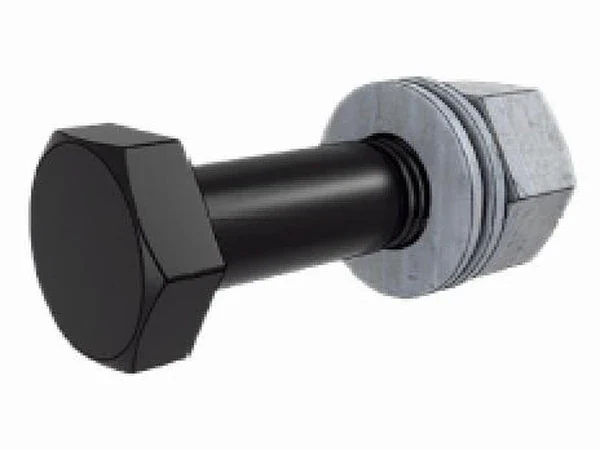

High-Strength Structural Bolt SetsGB/T 1228 · 1229 · 1230
Matched sets of large hex bolts, nuts and washers for friction-grip structural steel connections; supplied lot-controlled with test certificates.
M16 – M30 · Gr. 10.9S
View details

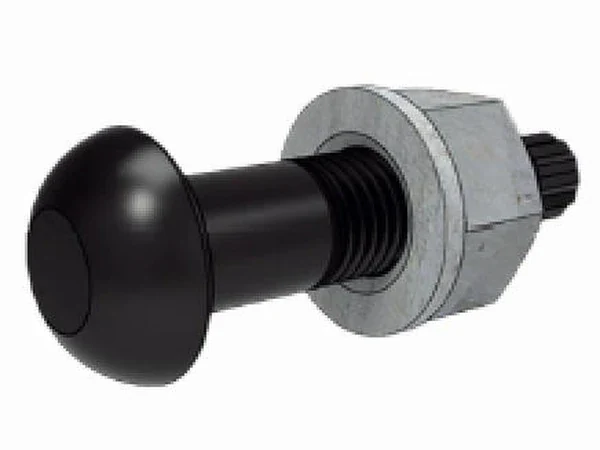

Torshear Type HSFG Bolt SetsGB/T 3632
TC bolts whose grooved end shears off at the correct preload — correct installation tension is verified visually by the sheared splined tip.
M16 – M24 · Gr. 10.9S
View details

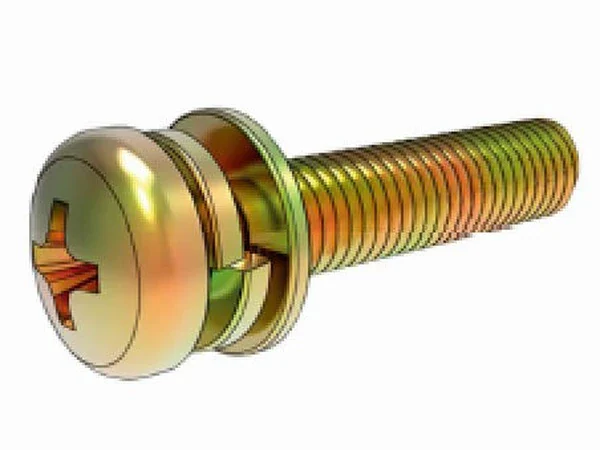

Pan Head Screw & Washer AssembliesGB/T 9074.4 · 9074.8
SEMS screws with a captive flat washer — nothing to drop, sort or mis-assemble on the assembly line.
M3 – M6 · Gr. 4.8 · Zn
View details

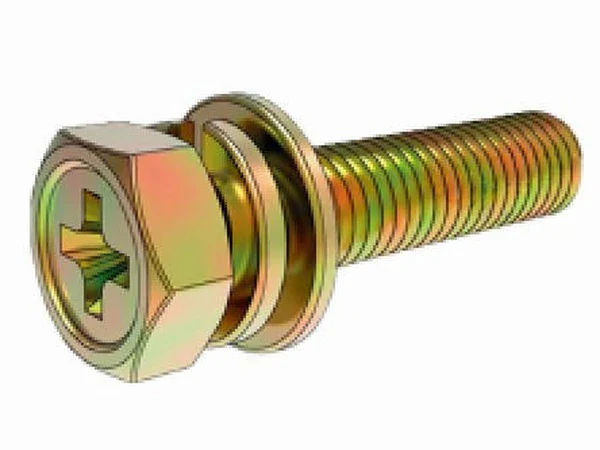

Hex Bolt & Washer AssembliesGB/T 9074.13 · 9074.17
Hex bolts (including the concave-cross version) assembled with a captive flat washer for faster, mistake-free installation.
M4 – M8 · Gr. 4.8 · Zn
View details
Socket Cap Screw & Washer AssembliesBased on GB/T 70.1
Cylinder head screws with captive washers for machine building where a hex key drive and high preload are required.
M4 – M8 · Gr. 4.8 · Zn
View detailsRigging Hardware7 items · turnbuckles, shackles, wire rope fittings

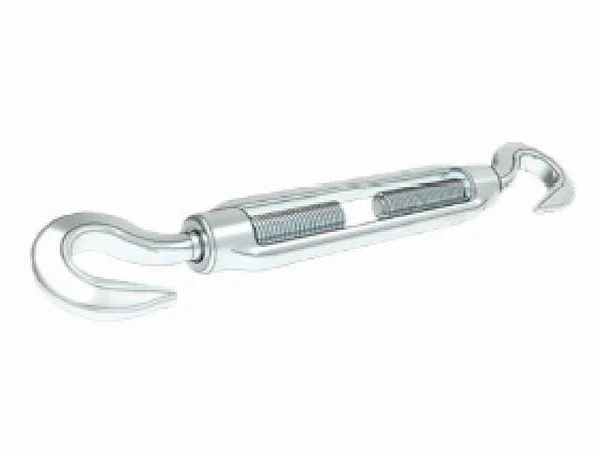

Turnbuckles, CC Type (Hook & Hook)GB 561, light & heavy duty
Closed-body turnbuckles with a hook on each end for quick hook-on tensioning of stays, guys and bracing wires; rotate the body to adjust length under load.
M8 – M24 · HDG / self colour · Gr. 4.8
View details

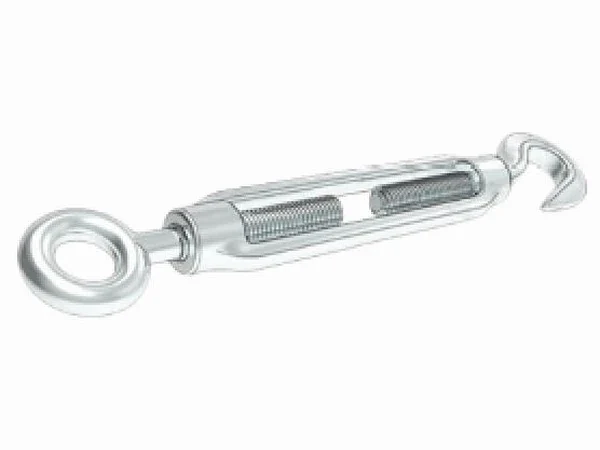

Turnbuckles, CO Type (Hook & Eye)GB 561, light & heavy duty
One hook end, one eye end — the eye is tied or spliced to the rope while the hook takes the fixed point; the general-purpose stay adjuster.
M8 – M36 · HDG / self colour · Gr. 4.8
View details

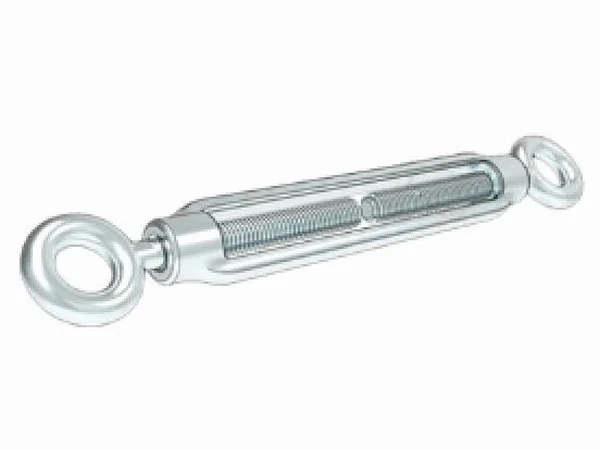

Turnbuckles, OO Type (Eye & Eye)GB 561, light & heavy duty
Eye on both ends for permanent swaged or spliced rope terminations — the choice where hooks would risk disengagement.
M10 – M36 · HDG / self colour · Gr. 4.8
View details

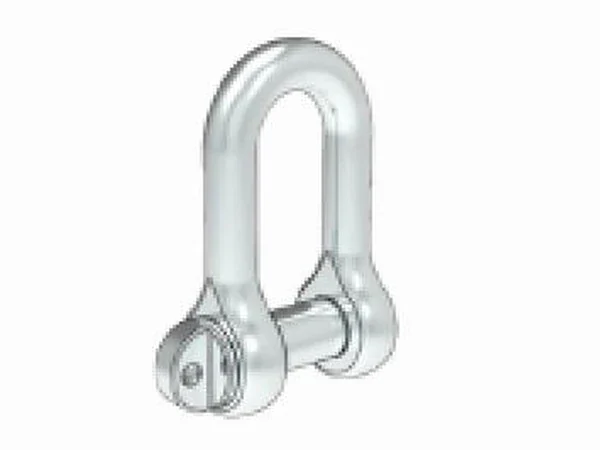

Heavy-Duty Dee ShacklesWI 4.15a
Narrow dee body for in-line pulls on lifting gear, hoist rings and anchor points where the load stays on the shackle axis.
Ø10 – 65 · HDG / white Zn · Gr. 4.8
View details

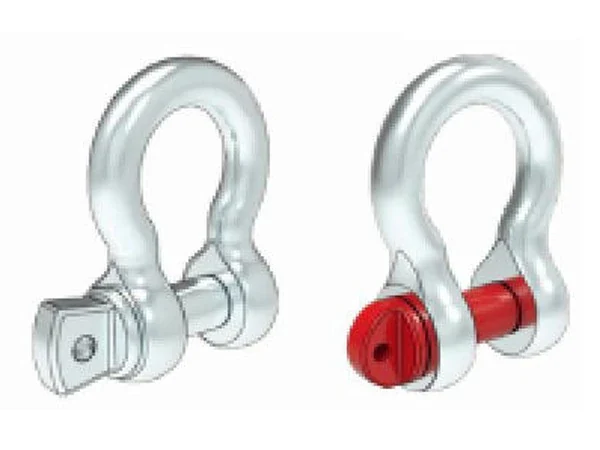

Bow Shackles, High-Tensile & US-Type ForgedWI 4.43 · WI 4.11
The bow body accepts multi-leg and angular sling loads. Full forged US-type anchor shackles available in imperial sizes 5/8" – 2".
Ø13 – 50 / 5/8" – 2" · Gr. 10.9 / forged
View details

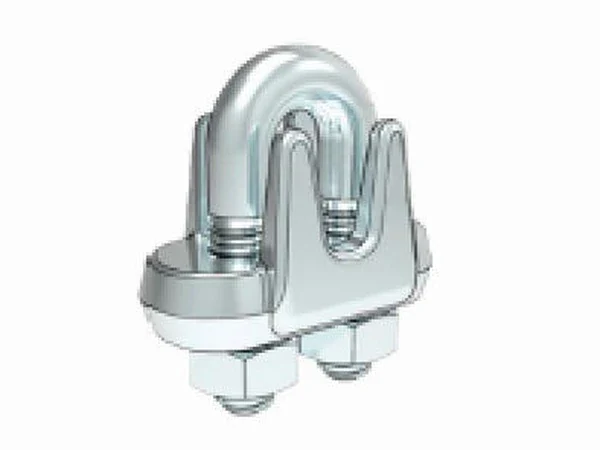

Wire Rope Clips, AssembledWI 4.8
U-bolt, saddle and nuts supplied as one set — two or three clips form an eye in wire rope; always saddle the live rope side, never the tail.
Ø5 – 64 · HDG / white Zn · Gr. 4.8
View details

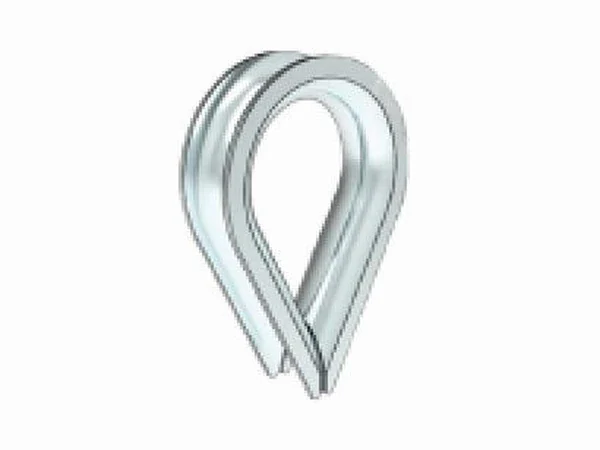

Wire Rope ThimblesWI 4.5b
Set into the rope eye to preserve the rope's natural curvature and protect it from crushing and wear at the terminations.
Ø6 – 50 · self colour · Gr. 4.8
View detailsExpansion & Chemical Anchors8 items · post-installed fixings into concrete

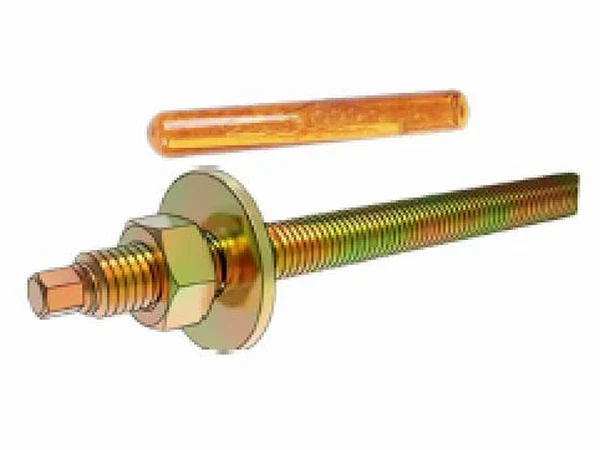

Chemical AnchorsWI 2.3
Threaded rod set in injection resin — no expansion stress, so anchor spacing and edge distances can be tight; the choice for cracked concrete and close-to-edge fixings.
M8 – M30 · Gr. 4.8 · Zn
View details

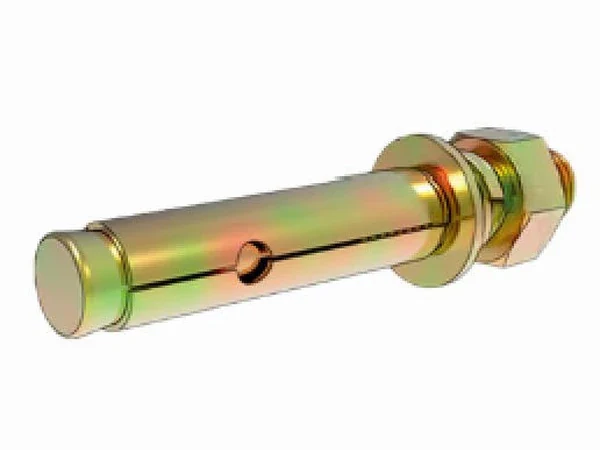

Sleeve AnchorsWI 2.31c
Torque-set expansion anchors for general concrete and masonry; removable and re-usable, with a hex head or nut end.
M6 – M20 · Gr. 4.8 · self colour / HDG / Zn
View details

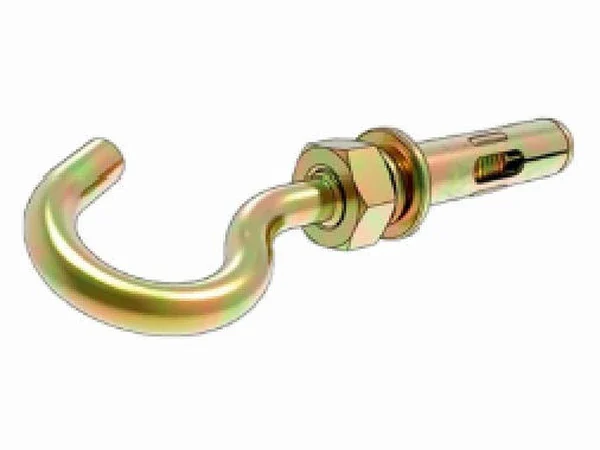

Hook Sleeve AnchorsWI 2.31e
Sleeve anchor with a hook end for hanging and restraining light fixtures, signs and guard rails.
M6 – M12 · Gr. 4.8 · Zn
View details

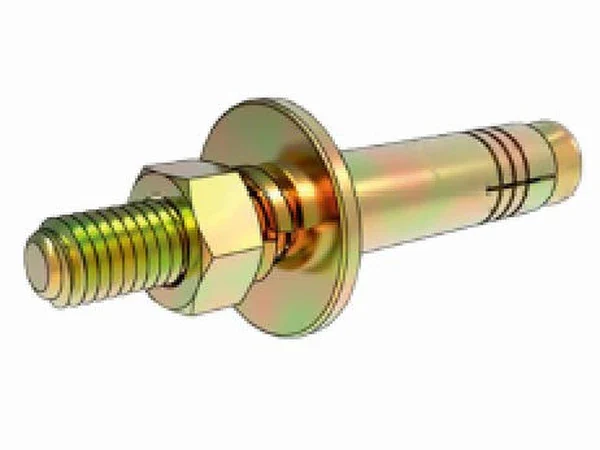

Elevator Expansion BoltsWI 2.2a
The specified fixing for elevator guide-rail brackets and machine-room equipment, with a flanged collar that seats on the rail clip.
M12 – M16 · Gr. 4.8 · Zn
View details

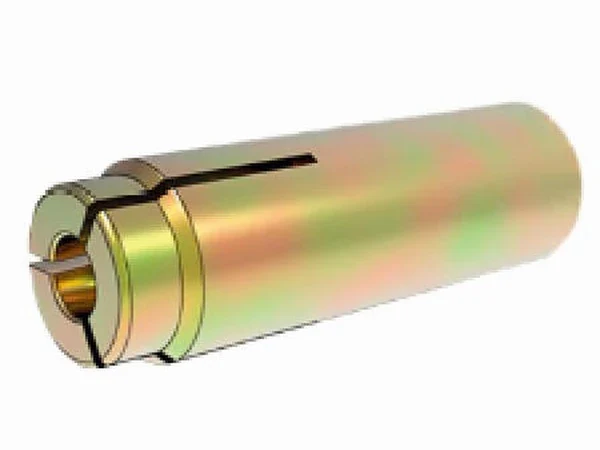

Internally Threaded (Drop-In) AnchorsWI 2.16a
Flush, internally threaded anchors set below the surface with a driving tool — the standard insert for hanging threaded rod from concrete, including overhead work.
M6 – M20 · Gr. 4.8 · Zn
View details

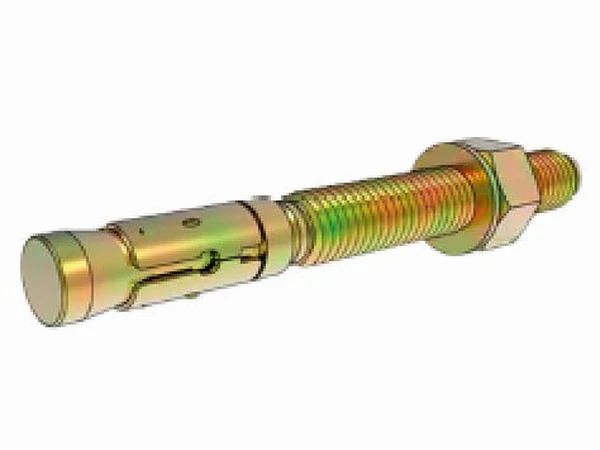

Vehicle-Maintenance Expansion BoltsWI 2.27
Heavy expansion bolts specified in workshop and vehicle-maintenance installations; long expansion sleeve gives a wide, low-stress grip.
M8 – M20 · Gr. 4.8 · Zn
View details

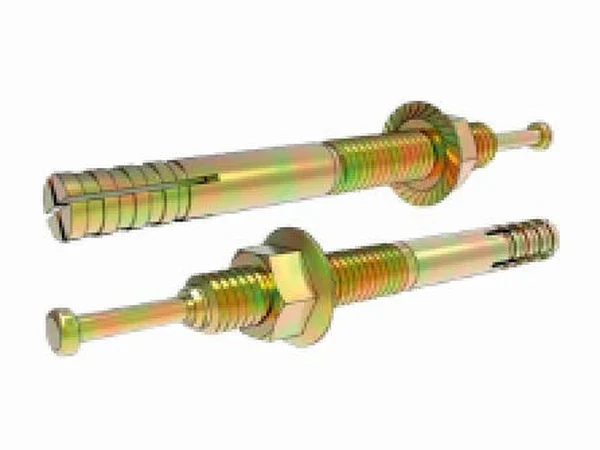

Hammer-Drive Expansion BoltsWI 2.29c
Nail-type anchors driven in with a hammer — the fast way to fix bottom plates, duct runs and light brackets to concrete.
M8 – M20 · Gr. 4.8 · Zn
View details

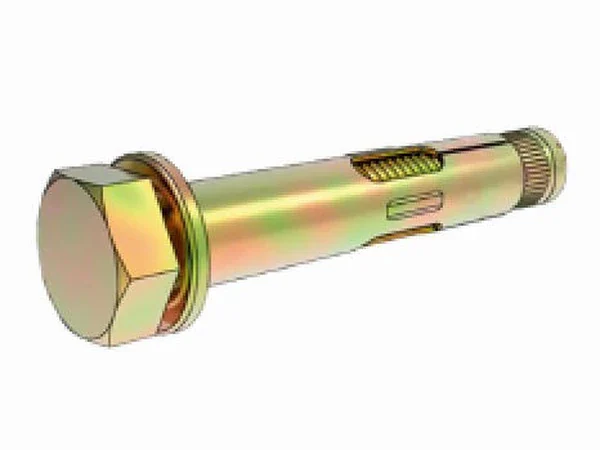

Hex Cone-Cap Expansion BoltsWI 2.34j
Hex head anchor with a cone-ended sleeve for positive, controlled expansion in concrete.
M6 – M12 · Gr. 4.8 · Zn
View detailsStainless Steel Series
The same eleven series supplied in AISI 304 / 316 (A2-50, A2-70, A4-70 property classes) — plus the carriage bolt and rivet series below. Product photos from Part 01 apply; only the material and property class change. Specify the corrosive environment and we will recommend 304 or 316.
Hex Bolts, Screws, Nuts & WashersGB/T 5782 · DIN 912 · DIN 934 · GB/T 97 · DIN 985
Hex head bolts M6–M36, socket cap and countersunk screws, cross recessed screws, set screws, hex / flange / lock / cap / wing / weld / eye nuts, flat and spring washers and external / internal retaining rings — all in 304 and 316.
View stainless rangeStuds, Pivot Bolts & Threaded RodGB/T 798 · GB/T 15389
Stainless pivot bolts M8–M24 and full-thread rod M3–M36 in A2-70 / A4-70, cut to length and threaded to order.
View stainless rangeSelf-Drilling & Self-Tapping ScrewsGB/T 845 · 846 · 15856.1/.2/.4
Pan head, countersunk head and hex washer head types in 304, ST4.2–ST6.3 — for coastal roofing, cladding and wash-down areas.
View stainless rangeKeys, Pins & AssembliesGB/T 91 · 119.1 · 879.1 · 9074.8 · 9074.17
Split pins, parallel pins, heavy-duty slotted spring pins and screw-washer assemblies in 304 / 316.
View stainless rangeCarriage Bolts (Round Head Square Neck)GB/T 12
Round head with a square neck that locks in the hole as the nut is tightened — used on timber construction and wherever a smooth, low head is wanted. 304, M6–M12, A2-70.
View detailsRivets & Blind RivetsGB/T 109 · 867 · 12617 · 12618
Solid rivets with flat head (GB/T 109) and round head (GB/T 867); open-type blind (pop) rivets with countersunk head (GB/T 12617) and dome head (GB/T 12618) — set from one side only, for closed sections and single-side access panels. Ø3–6.4, A2-70.
View detailsStainless Expansion AnchorsWI 2.31c · 2.31e · 2.16a · 2.27
Sleeve anchors, hook sleeve anchors, internally threaded drop-in anchors and vehicle-maintenance expansion bolts in 304 — for coastal structures, water treatment and food plant.
View stainless rangeRigging Hardware in StainlessTurnbuckles · shackles · thimbles
Turnbuckles, shackles, wire rope clips and thimbles in 304 / 316 for marine, coastal and chemical environments.
View stainless rangeMaterials, Grades & Coatingconfirm the combination against exposure conditions before ordering
Carbon steel
Q235B, 45#, 40Cr, 35CrMo, 42CrMo — grades 4.8, 8.8, 10.9, 12.9; metric, DIN, ANSI and BS threads
Stainless steel
304 / 316 / 201, A2-50, A2-70, A4-70; passivated finish; anti-galling coating available on request
Surface protection
Hot-dip galvanizing to ISO 1461 / ASTM A153 (min. 70 µm); blue-white and colour zinc; Zn-Al flake; black oxide
Documentation
Mill test certificate EN 10204 3.1 with heat-number traceability; lot-controlled packing on request
Why stainless fasteners gall (seize)
During tightening, the oxide films on stainless threads rupture and weld metal-to-metal under pressure and heat. Galling builds with each of these factors:
- Material characteristics — high ductility, poor heat conduction, passive oxide film
- Clamping force beyond the safe torque for the thread size
- Side loading or a tilted bolt during tightening
- Wrong tool, or an impact driver running at full speed
- Dirt or contamination carried into the thread
How we prevent it
- Tighten to the safe torque table for the thread size — never to feel
- Pull the wrench along the bolt axis; keep the bolt square to the hole
- Slow speed on power tools; finish by hand
- Specify our anti-galling coated stainless fasteners (RoHS-compliant coating, batch tested)
- Keep threads clean; use lubricant or anti-seize where dismantling is expected
Critical applications: rail fastening, curtain-wall and facade connections, flange joints, work-at-height installations and power-tool driven fixings.
Send your fastener list
Standard number, size, grade and coating are enough for us to quote. Mixed carbon and stainless lists and small quantities are welcome — send the file and we will come back with a full offer.
