Crane Polyurethane Buffer: 5 Essential Quality Checks Before You Buy

Why Identical-Looking Buffers Vary in Price

If you have sourced polyurethane buffers for crane end stops lately, you have seen this. Five suppliers quote on the same drawing. Same external dimensions, same bolt pattern. Prices all over the map. Every one of them claims to meet the same spec.

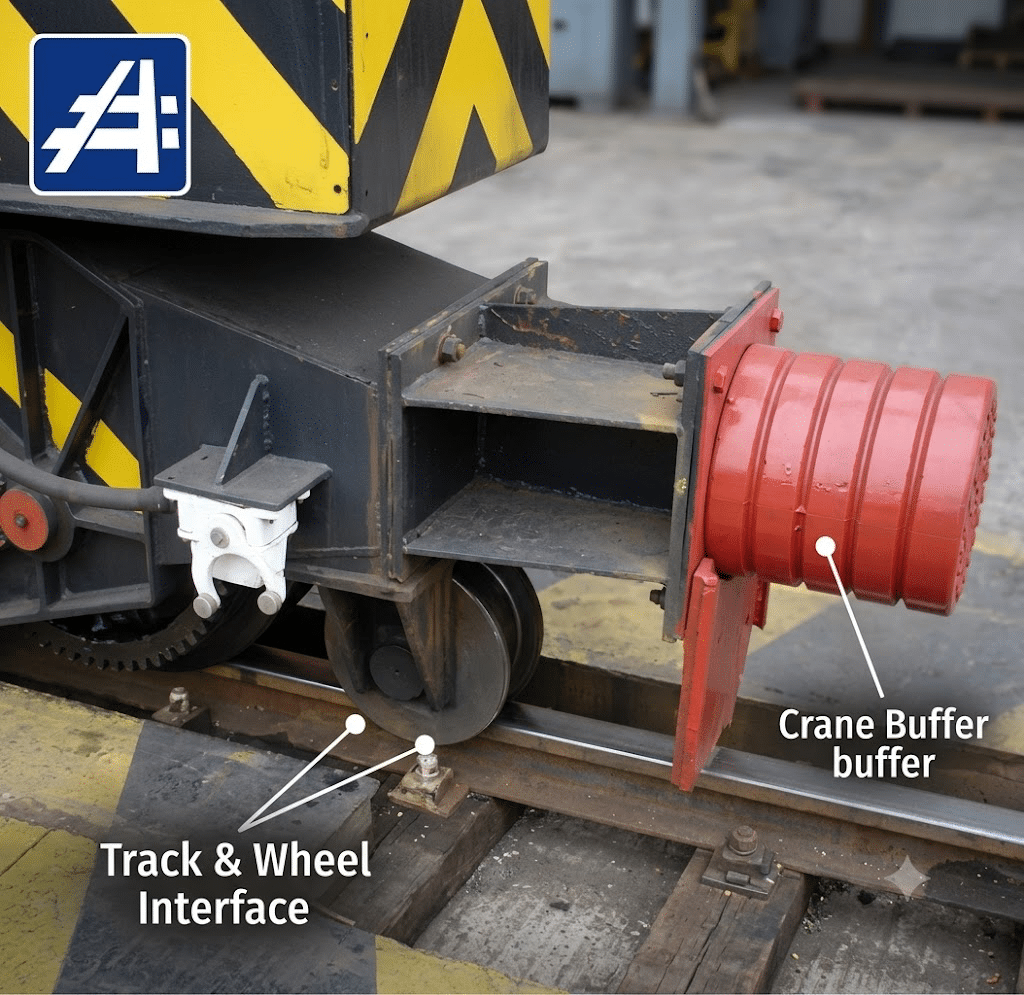

It is not brand markup. It is not middlemen padding the quote. It is engineering that you cannot see from the outside. A crane polyurethane buffer is either a precision energy-absorption element, or it is a lump of plastic shaped to look like one. The difference comes down to three things: internal structure, polymer chemistry, and how the base plate is attached.

For an overview of crane buffer stop types, see our buffer stops product page.

Hydraulic buffers are another option for crane end stops, particularly where a longer controlled stroke or lower peak force is required. They convert impact energy into heat as oil is forced through calibrated orifices, so reliable valve and circuit selection is essential to stable deceleration. For hydraulic valves and related control components, see hydraulic valves from Adiffer Hydraulics.

Microcellular Foam vs Solid Casting

Put a quality crane polyurethane buffer and a cheap one side by side. They look the same. Cut them open and the difference is immediately obvious.

A proper buffer is made with a microcellular foaming process. Closed-cell bubbles, 50–200 µm across, packed uniformly through the entire body. When the crane hits the buffer, those bubbles compress. Kinetic energy turns into heat and dissipates. A well-built microcellular buffer absorbs more than 70% of the impact energy.

The cheap alternative is solid-cast polyurethane. Sometimes it is recycled material, ground up from old industrial parts and pressed together with adhesive. Under impact, a solid-cast buffer barely compresses. It acts like a spring with almost no travel. The reaction force spikes and shoots straight into the crane’s end truck, rail stops, and mounting bolts.

For a heavy overhead crane or a gantry in daily service, that spike is what cracks welds. It is what loosens rail clip bolts. It is what knocks crane rail alignment out of tolerance over months and years.

See Forgesail’s buffer stop product range for JHQ-C series specifications.

MDI vs TDI Chemistry in Crane Polyurethane Buffers

Polyurethane is a family of materials, not one thing. The raw chemistry decides how the buffer ages — especially outdoors.

Quality crane polyurethane buffers use MDI or NDI prepolymers on a polyether backbone, with anti-hydrolysis and UV stabilizer additives. These stay elastic after years of humidity, salt, and temperature cycling. That matters in a coastal container terminal. It matters in a steel mill bay with no climate control and drifting coke dust.

Budget buffers run on TDI chemistry with a polyester backbone. Polyester hydrolyzes. Put it anywhere with moisture, even ambient tropical humidity, and the polymer chains start breaking. The surface goes chalky, then crumbly. We have seen this happen inside six months at Southeast Asian ports.

Rebound tells the same story. A polyether buffer snaps back instantly, above 93% recovery. Recycled or polyester material leaves a dent that stays. Next impact hits a shorter, harder buffer. A few impacts later you are hitting metal on metal.

Vulcanized vs Glued Base Plates for Crane Polyurethane Buffers

Crane impacts are almost never perfectly axial. The trolley drifts a few millimeters. The bridge skews under braking. There is lateral shear on every hit.

Quality buffers embed a Q235 steel flange plate through high-temperature vulcanization. The polyurethane bonds to the steel at a molecular level. Peel strength runs above 3,000 N. Hit it off-center and the body stays on the plate. The plate stays bolted down.

Cheap buffers use a thin plate cold-glued on, or skip the plate entirely and cast a threaded stud into the PU. Lateral shear shears it right off. Once the buffer is gone, the next stop is steel hitting steel, and the repair is no longer about ordering a replacement buffer.

Forgesail’s buffer stops use vulcanized steel base plates as standard.

5 Field Tests to Verify Crane Polyurethane Buffer Quality

Test 1: Cut One Open

Ask the supplier to section a sample buffer crosswise. A microcellular buffer looks smooth and uniform inside — no visible chunks, no layers, no holes. Recycled material looks like what it is: bits of different colors pressed together, with gaps and lamination lines. This test alone catches most bad product.

Test 2: Thumbnail Indentation

Press your thumbnail in hard for three seconds and release. Proper PU rebounds instantly with no mark. Cheap material leaves an indentation that hangs around for minutes, or never fully disappears.

Test 3: Odor Check

Quality polyether has almost no odor. Maybe a faint resin note that fades fast. Recycled material smells sharp and acrid, like burnt plastic. If it stings your eyes, it does not belong on a crane.

Test 4: Density Calculation

Measure dimensions, weigh the buffer, calculate density. A properly engineered microcellular crane polyurethane buffer should land between 0.45 and 0.65 g/cm³. Lower means too much foam, not enough load capacity. Higher means too dense to compress properly.

Test 5: Standard Compliance

The applicable standard is JB/T 10833-2017, Polyurethane Buffer for Cranes. It defines buffer capacity ratings, stroke tolerance (≤5%), buffer force tolerance (≤10%), and operating conditions (−20°C to +55°C, up to 90% RH). If a supplier cannot produce a type-test report, batch certificate, or material traceability against this standard, they are not selling a crane-rated product.CMAA Specification #70 provides additional design guidance.

The True Cost of a Failed Buffer

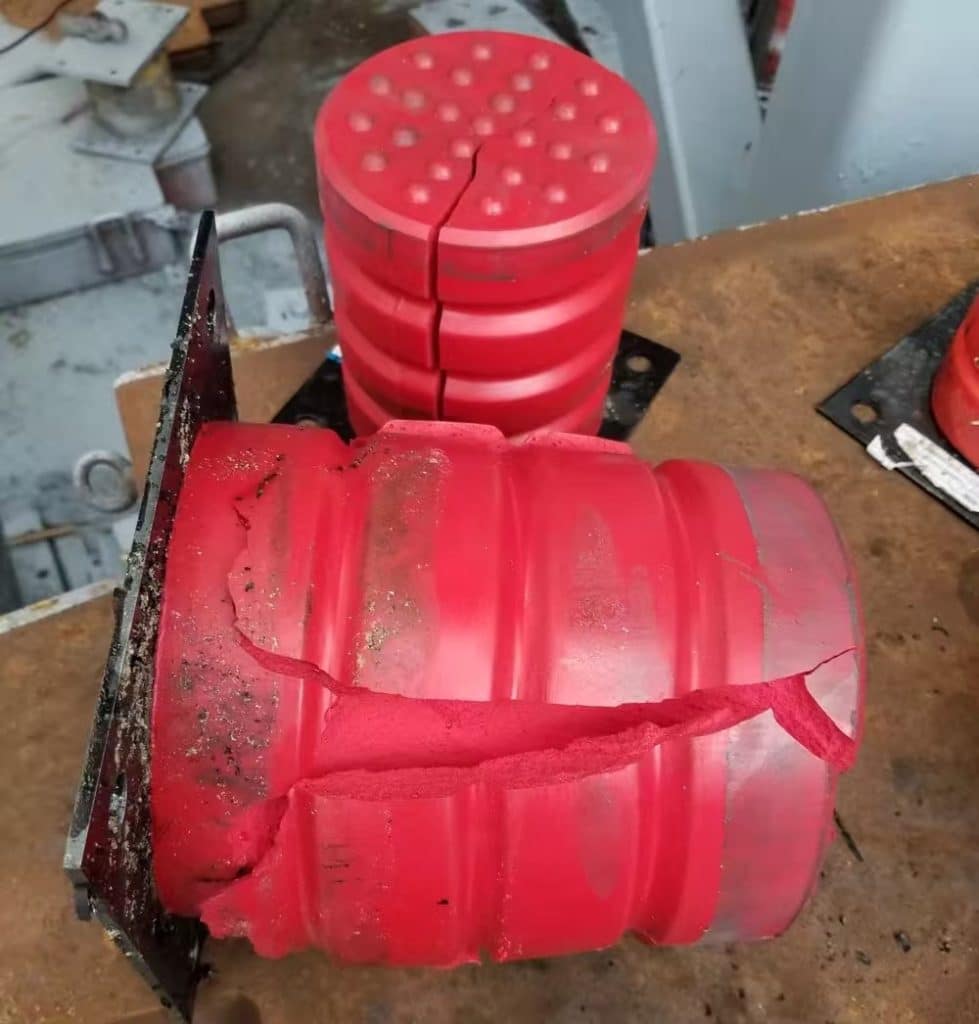

A buffer that crumbles at 12 months is not an isolated incident. It is a chain of failures.

The end stop takes an unprotected hit. Mounting bolts shear. Rail alignment shifts. The rail clip system absorbs loads it was never rated for. The crane goes down for unplanned maintenance. CMAA Specification #70 provides guidelines for crane end stop design and inspection. In a port or a steel mill, an hour of downtime costs more than the difference between the cheapest buffer on the market and the right one.

Worse: if the failure gets caught during a periodic inspection, the crane fails certification until repairs are complete and re-inspected. Now you are not just fixing a buffer. You are explaining to operations why a machine that was running yesterday is grounded today.

For a complete inspection checklist, see our crane rail maintenance checklist.

Frequently Asked Questions

Forgesail Products & Support

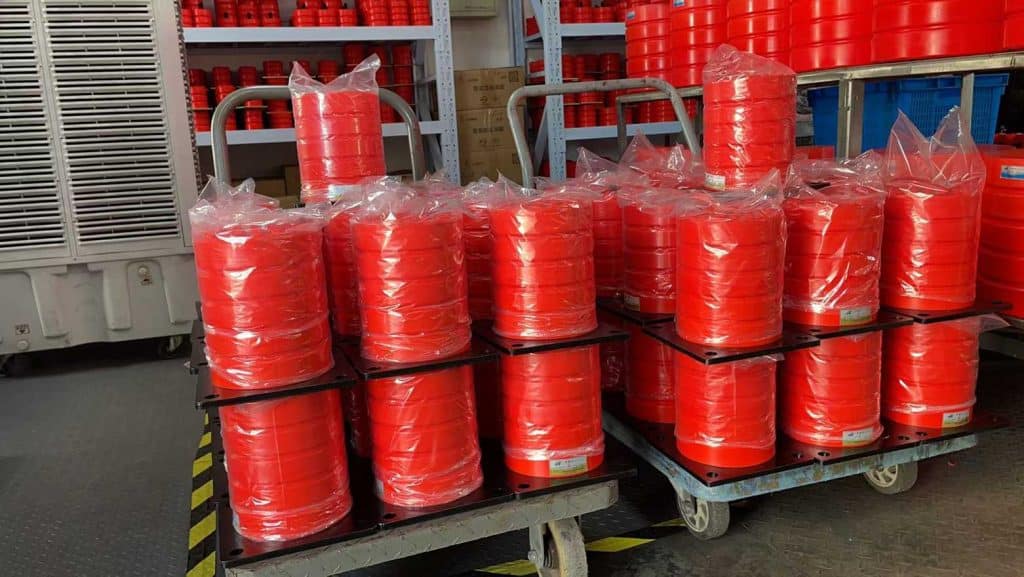

FORGESAIL’s JHQ-C series polyurethane buffers are manufactured to JB/T 10833-2017 using MDI polyether microcellular foam with vulcanized steel base plates. We supply them as part of complete crane track packages alongside rail fastening systems, rail pads, and buffer stops.

Crane polyurethane buffers (JHQ-C series)

Rail clips and fastening systems

Rail pads and sole plates

Crane rail profiles

If you are evaluating suppliers, ask for a cross-section cut. If they will not open one up for you, think about what they are hoping you will not see. Contact the ForgeSail engineering team for application-specific recommendations.
