Replaceable Nose Rail Clips
Replace the rubber nose, not the whole clip. Cuts maintenance from 2 hours to 15 minutes — without removing the rail.
Three Reasons to Switch
Engineered for ports, terminals, and heavy industrial rail where downtime is measured in dollars per minute.

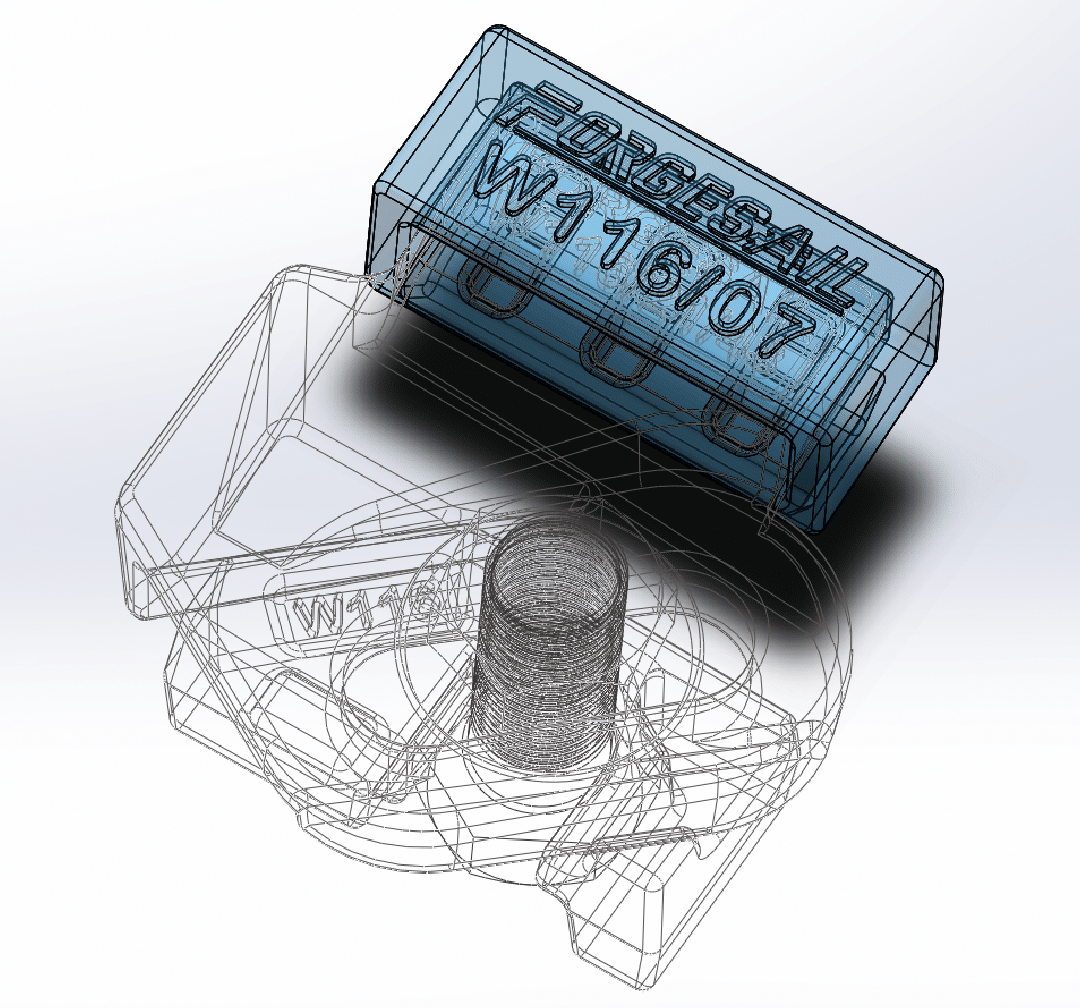

Replaceable Nose
High-elasticity EVA composite. Ozone-resistant, UV-stable. Rated for -40°C to +80°C. Dovetail lock ensures zero displacement.
- Replace only the nose
- Rail stays in place
- ~15 minutes

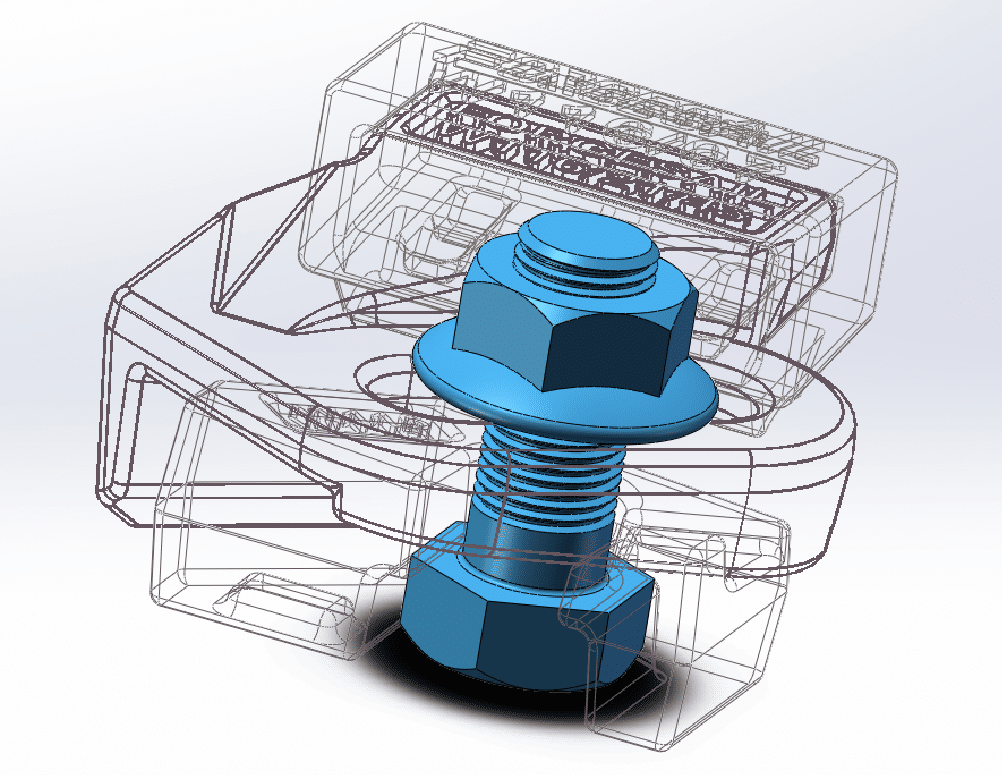

Universal Bolt Compatibility
Standard M12, M16, M20, M22, M24 hex bolt interfaces available in Grade 8.8 and 10.9 (optional), hot-dip galvanized. No special bolts required — significantly lowers all adaptation and inventory costs. Compatible with GB, DIN, ISO, and ASTM standards. Weld-on (W) and through-bolt (B) variants.

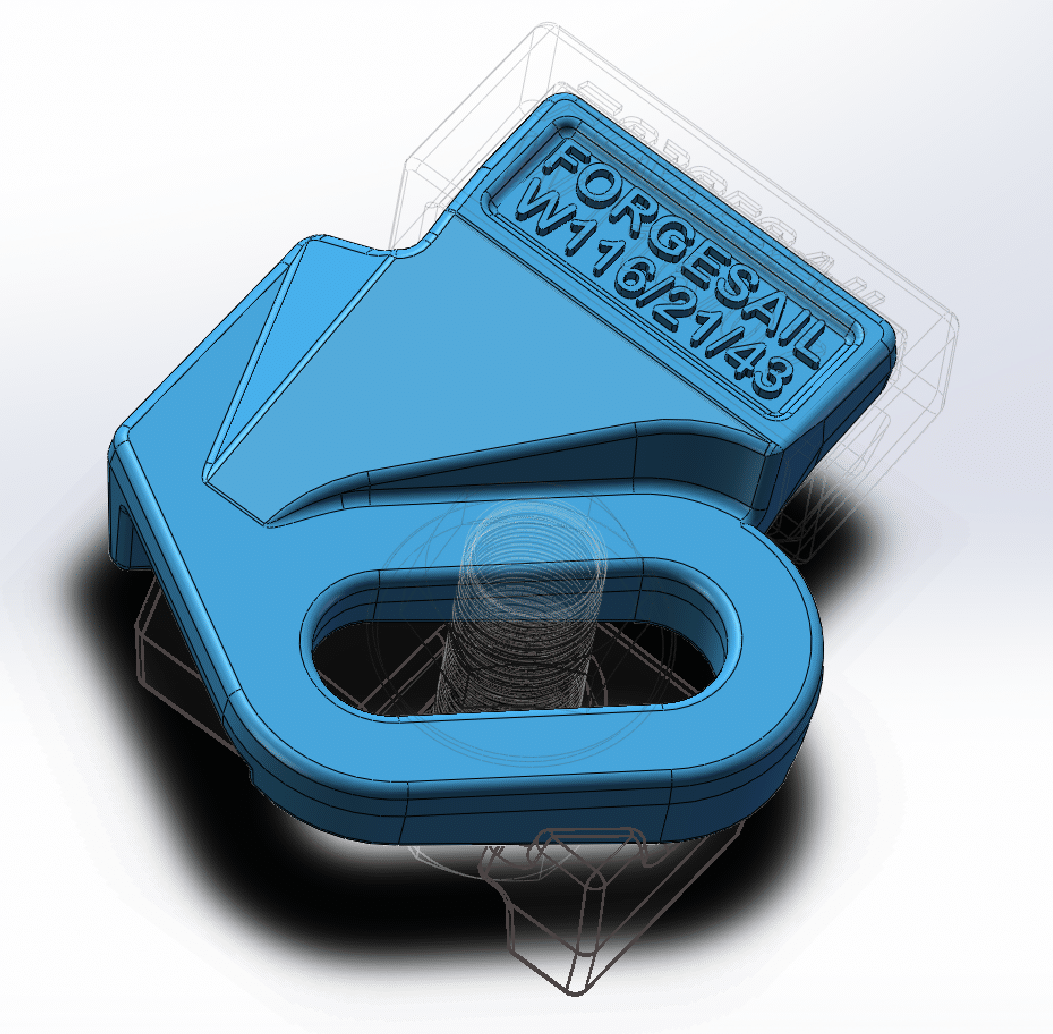

Upper Clip Plate Design
Forged Q355B upper clip, hot-dip galvanized per ISO 1461. Reinforced load-bearing structure optimally distributes stress, delivering superior strength, exceptional fatigue resistance, and significantly extended service life in demanding heavy-duty environments.
What You Save Per Clip
Real-world figures from port and terminal operations over a 10-year lifecycle.
Single Maintenance
Spare Part Replacement
10-Year Lifecycle
Replace in 15 Minutes
No rail removal. No special tools. No heavy lifting.
Loosen the Bolt
Use a standard torque wrench. The upper clip cap tilts open.
Slide Out the Old Nose
The worn EVA rubber slides freely out of the dovetail channel.
Insert New Nose & Tighten
Slide a fresh EVA nose in, close the cap, torque to spec. Done.
Five Models, One Standard
Weld-on and through-bolt variants covering A45 through A150 rail profiles.
| Parameter | W116-RN | W120-RN | W124-RN | B116-RN | B120-RN |
|---|---|---|---|---|---|
| Type | Weld-on | Weld-on | Weld-on | Through-bolt | Through-bolt |
| Bolt Spec | M16 | M20 | M24 | M16 | M20 |
| Max Lateral Load | 135 kN | 180 kN | 220 kN | 120 kN | 160 kN |
| Adjustment Range | 20 mm | 24 mm | 28 mm | 16 mm | 20 mm |
| Nose Material | EVA composite — ozone & UV resistant | ||||
| Base Material | Forged alloy steel — hot-dip galvanized | ||||
| Bolt Torque | 200 Nm | 280 Nm | 350 Nm | 180 Nm | 250 Nm |
| Unit Weight | 0.70 kg | 0.95 kg | 1.25 kg | 0.65 kg | 0.88 kg |
| Rail Profile | A45–A75 | A75–A120 | A100–A150 | A45–A75 | A75–A120 |
Replaceable Nose vs Traditional Clip
Every dimension that matters to maintenance, procurement, and operations.
| Dimension | Traditional Integrated Clip | FORGESAIL Replaceable Nose |
|---|---|---|
| Nose replacement | ✗ Not possible — full discard | ✓ Independent, ~2 min |
| Maintenance shutdown | Must lift and remove the rail | ✓ Rail remains in place |
| Spare parts inventory | Full clips — bulky, costly | ✓ Lightweight nose inserts (<50g) |
| Bolt compatibility | Proprietary or limited | ✓ Standard M16/M20/M24 |
| Installation tolerance | ±1 mm | ✓ ±3 mm adjustment |
| Life cycle cost (10 yr) | ~$1,200 per clip | ✓ ~$180 per clip |
| Weld alignment | Requires precise alignment | ✓ Margin reduces weld precision needs |
| Environmental waste | Full metal+rubber discard | ✓ Only rubber; metal lasts lifetime |
Built to Global Standards
Every FORGESAIL rail clip is manufactured under ISO 9001:2015, tested to EN ISO 5817 welding standards, and supported by full material and test documentation.
Frequently Asked Questions
How often should the nose be replaced?
Depends on frequency and environment. High-frequency port operations (>500,000 cycles/year) recommend inspection every 2–3 years. General industrial rail: 5–8 years. Replace when compression set exceeds 30% or crack depth exceeds 2mm.
Are older noses compatible with new clips?
Yes. FORGESAIL guarantees the nose interface for 10 years without change. All W/B series clips since 2018 accept the latest EVA nose inserts.
Can I replace the nose without stopping operations?
A brief shutdown (~15 min) is needed, but the rail does not need to be moved. That is an 85%+ reduction in downtime vs traditional full-clip replacement.
Do I need special tools for bolt torquing?
No. A standard torque wrench is all that is needed. Recommended torque values for each model are listed in the technical specifications.
How do I order replacement nose inserts?
Provide your clip model number (e.g., W116-RN) and quantity. Minimum order: 50 pieces. Contact our sales team for bulk pricing.
